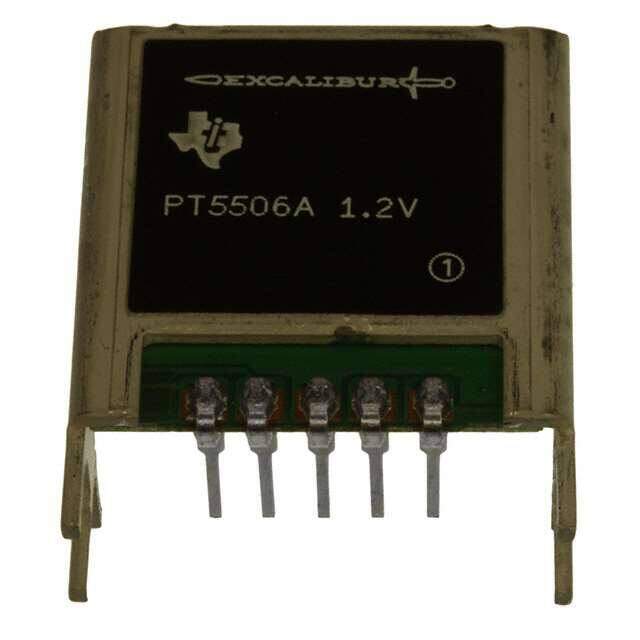

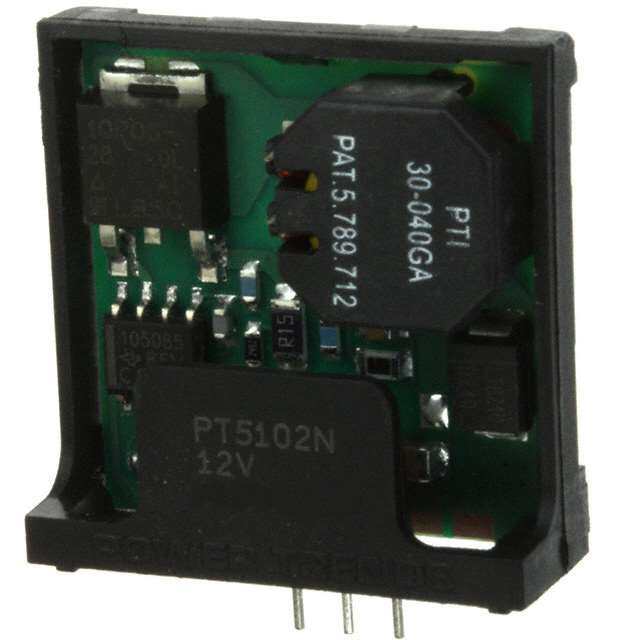

PT5506A image
Favorite
PT5506A image
Favorite
RoHS
RoHS RoHS compliant
Package 5-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description REG 1.2V 3A 3.3/5VIN ADJ HORZ
PDF
/
Inventory: 6268
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Width 22.9mm
Length 28.19mm

Technical

Isolation Non-Isolated
Switcher Configuration BUCK
Nominal Input Voltage 3.3V
Current - Output 1 3A
Control Mode VOLTAGE-MODE
Output Power 3.6W
Output Current 3A
Input Voltage-Nom 5V
Voltage - Input (Min) 3.1V
Max Output Current 3A
Output Voltage 1.2V
Voltage - Input (Max) 5.5V
Efficiency 79%
Number of Outputs 1
Pin Count 5
Base Part Number PT5506
Depth 22.86mm
Number of Functions 1
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 3.6W
Subcategory Switching Regulator or Controllers
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series Excalibur? PT5500
Packaging Tray
Operating Temperature -40°C~85°C

Physical

Weight 6.5g
Number of Pins 5
Package / Case 5-SIP Module
Mounting Type Through Hole, Right Angle
Mount Through Hole

Alternative Model
