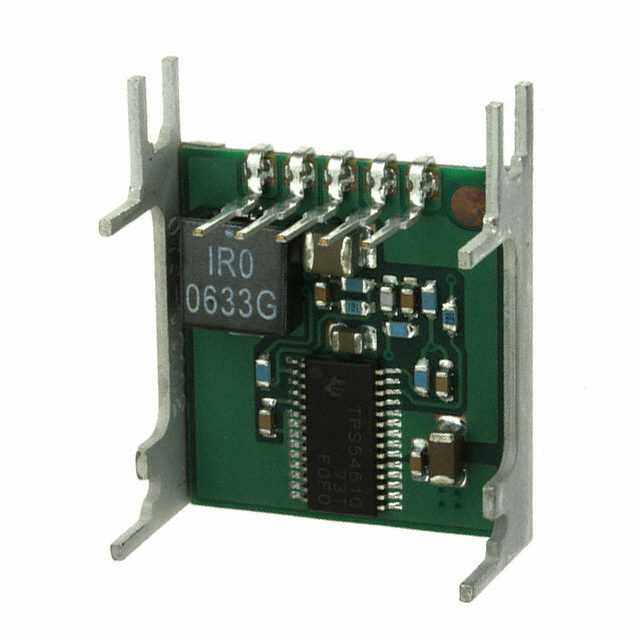

PT5403A
RoHS
RoHS compliant
RoHS compliantPackage 5-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
REGULATOR 5/3.3VIN 6A HORZ
PDF
/
Inventory: 7523
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole, Right Angle
Package / Case 5-SIP Module
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series Excalibur? PT5400
Size / Dimension 1.11Lx0.90W x 0.31 H 28.2mmx22.9mmx7.9mm
Pbfree Code no
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Subcategory Switching Regulator or Controllers
Max Power Dissipation 11W
Technology HYBRID
Terminal Position SINGLE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Terminal Pitch 2.54mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number PT5403
Pin Count 5
JESD-30 Code R-MSMA-T5
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 88%
Voltage - Input (Max) 5.5V
Output Voltage 2V
Max Output Current 5.5A
Voltage - Input (Min) 3.1V
Input Voltage-Nom 3.3V
Control Mode VOLTAGE-MODE
Switcher Configuration BUCK
Switching Frequency-Max 700kHz
Dimensions
Height 7.874mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Contains Lead
