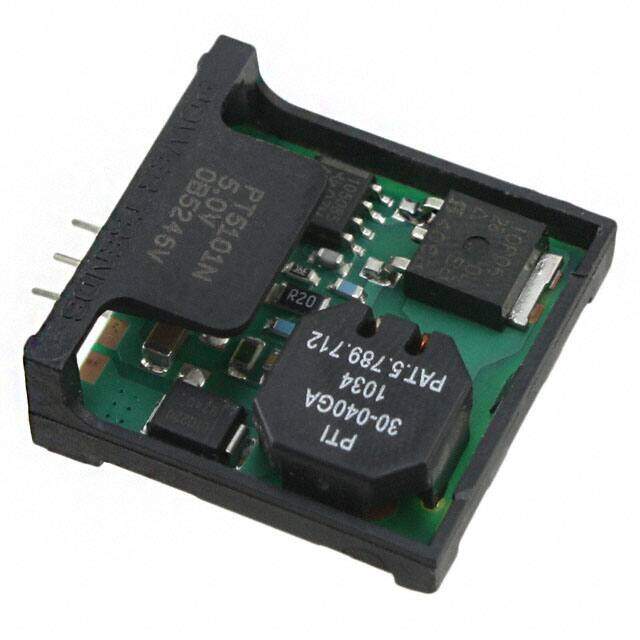

PT5112N
RoHS
RoHS compliant
RoHS compliantPackage 3-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 8V 8W
PDF
/
Inventory: 8391
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Height 25.908mm
Technical
Switching Frequency-Max 800kHz
Switcher Configuration BUCK
Current - Output 1 1A
Control Mode VOLTAGE-MODE
Output Power 8W
Output Current 1A
Input Voltage-Nom 12V
Voltage - Input (Min) 12V
Max Output Current 1A
Output Voltage 8V
Voltage - Input (Max) 38V
Efficiency 91%
Qualification Status Not Qualified
Number of Outputs 1
Pin Count 3
Base Part Number PT5112
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 25.4mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 8W
Subcategory Switching Regulator or Controllers
Applications ITE (Commercial)
Type Linear Regulator Replacement
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature OCP, OTP
Size / Dimension 1.00Lx0.38W x 1.02 H 25.4mmx9.7mmx25.9mm
Series PT5100
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Number of Pins 3
Package / Case 3-SIP Module
Mounting Type Through Hole
Mount Through Hole
