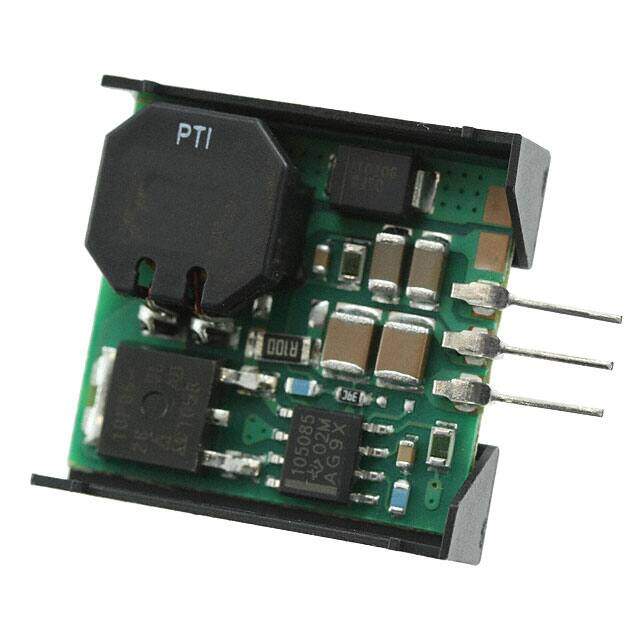

PT5105N
RoHS
RoHS compliant
RoHS compliantPackage 3-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 6.5V 6W
PDF
/
Inventory: 7276
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 3-SIP Module
Number of Pins 3
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series PT5100
Size / Dimension 1.00Lx0.38W x 1.02 H 25.4mmx9.7mmx25.9mm
Feature OCP, OTP
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
ECCN Code EAR99
Type Linear Regulator Replacement
Applications ITE (Commercial)
Power (Watts) 6W
Subcategory Switching Regulator or Controllers
Max Power Dissipation 6.5W
Technology HYBRID
Terminal Position SINGLE
Number of Functions 1
Depth 25.4mm
Base Part Number PT5105
Pin Count 3
Number of Outputs 1
Efficiency 90%
Voltage - Input (Max) 38V
Output Voltage 6.5V
Max Output Current 1A
Voltage - Input (Min) 10.5V
Input Voltage-Nom 10.5V
Output Current 1A
Control Mode VOLTAGE-MODE
Switcher Configuration BUCK
Switching Frequency-Max 800kHz
Isolation Non-Isolated
Dimensions
Height 25.908mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
