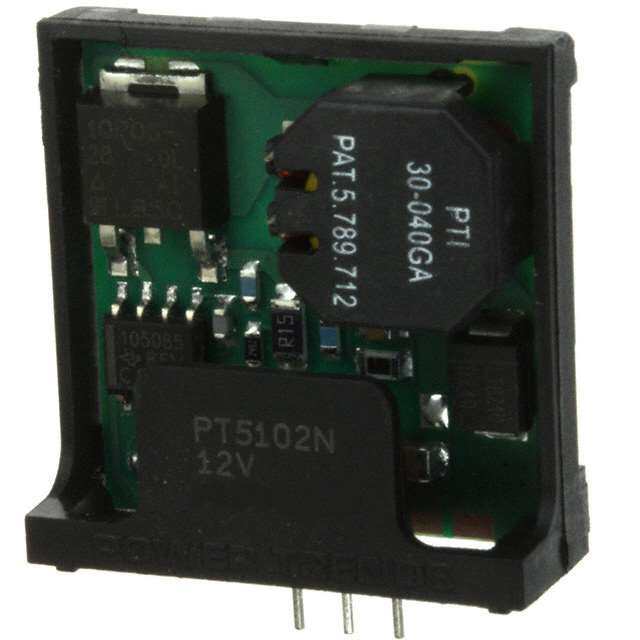

PT5102H
RoHS
RoHS compliant
RoHS compliantPackage 3-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
REGULATOR 12.0V 1A HORZ VT-HT
PDF
/
Inventory: 3307
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Height 35.306mm
Technical
Switching Frequency-Max 800kHz
Switcher Configuration BUCK
Control Mode VOLTAGE-MODE
Output Current 1A
Input Voltage-Nom 16V
Voltage - Input (Min) 16V
Max Output Current 1A
Output Voltage 12V
Voltage - Input (Max) 38V
Efficiency 94%
Qualification Status Not Qualified
Number of Outputs 1
Base Part Number PT5102
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 12W
Subcategory Switching Regulator or Controllers
Power (Watts) 12W
Applications ITE (Commercial)
Type Linear Regulator Replacement
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature OCP, OTP
Size / Dimension 1.00Lx0.38W x 1.39 H 25.4mmx9.7mmx35.3mm
Series PT5100
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Number of Pins 3
Package / Case 3-SIP Module
Mounting Type Through Hole, Right Angle
Mount Through Hole
