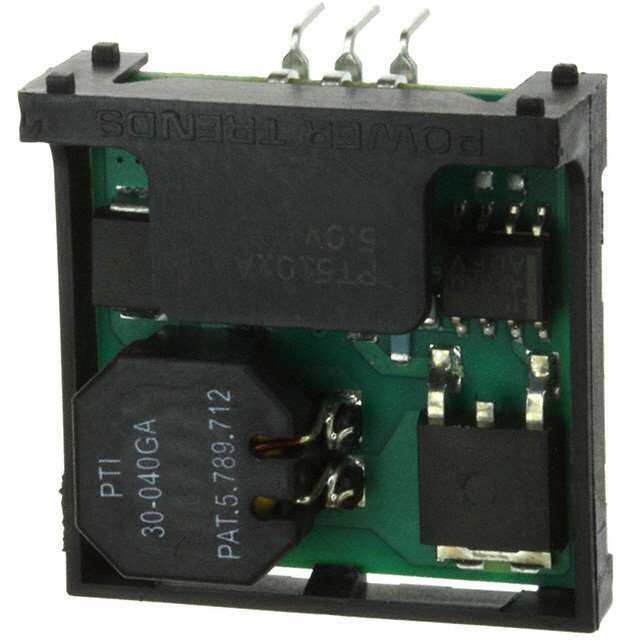

PT5101M image
Favorite
PT5101M image
Favorite
RoHS
RoHS RoHS compliant
Package 3-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description Module DC-DC 1-OUT 5V 1A 3-Pin(3+2Tab) SIP Module
PDF
/
Inventory: 5367
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Through Hole
Mounting Type Through Hole, Right Angle
Package / Case 3-SIP Module
Number of Pins 3

Technical

Operating Temperature -40°C~85°C
Packaging Tray
Series PT5100
Size / Dimension 1.02Lx1.00W x 0.38 H 25.9mmx25.4mmx9.7mm
Feature OCP, OTP
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
ECCN Code EAR99
Type Linear Regulator Replacement
Applications ITE (Commercial)
Subcategory Switching Regulator or Controllers
Max Power Dissipation 5W
Technology HYBRID
Terminal Position SINGLE
Number of Functions 1
Terminal Pitch 2.54mm
Depth 25.4mm
Base Part Number PT5101
Pin Count 3
Number of Outputs 1
Efficiency 90%
Voltage - Input (Max) 38V
Output Voltage 5V
Max Output Current 1A
Voltage - Input (Min) 9V
Input Voltage-Nom 9V
Output Current 1A
Output Power 5W
Control Mode VOLTAGE-MODE
Current - Output 1 1A
Switcher Configuration BUCK
Switching Frequency-Max 800kHz
Isolation Non-Isolated
