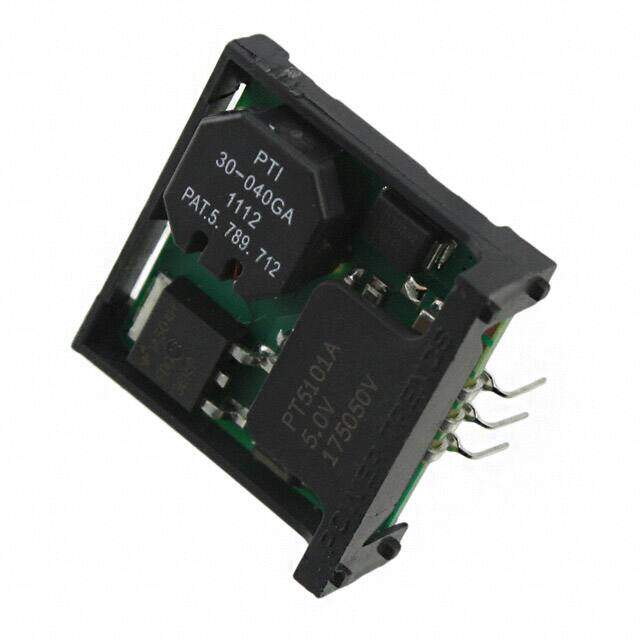

PT5101A
RoHS
RoHS compliant
RoHS compliantPackage 3-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
REG 5V/1A 3P-SIP INT SWIT HORIZ
PDF
/
Inventory: 4217
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole, Right Angle
Package / Case 3-SIP Module
Number of Pins 3
Weight 4.5g
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series PT5100
Size / Dimension 1.00Lx1.02W x 0.38 H 25.4mmx25.9mmx9.7mm
Feature OCP, OTP
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
ECCN Code EAR99
Type Linear Regulator Replacement
Applications ITE (Commercial)
HTS Code 8504.40.85.00
Subcategory Switching Regulator or Controllers
Max Power Dissipation 5W
Technology HYBRID
Terminal Position SINGLE
Number of Functions 1
Terminal Pitch 2.54mm
Depth 25.4mm
Current Rating 1A
Frequency 650kHz
Base Part Number PT5101
Pin Count 3
Number of Outputs 1
Efficiency 90%
Output Voltage 5V
Max Output Current 1A
Input Voltage-Nom 9V
Output Current 1A
Output Power 5W
Control Mode VOLTAGE-MODE
Current - Output 1 1A
Switcher Configuration BUCK
Max Output Power 5W
Isolation Non-Isolated
Nominal Output Voltage 5V
Max Input Voltage (DC) 38V
Min Input Voltage (DC) 9V
