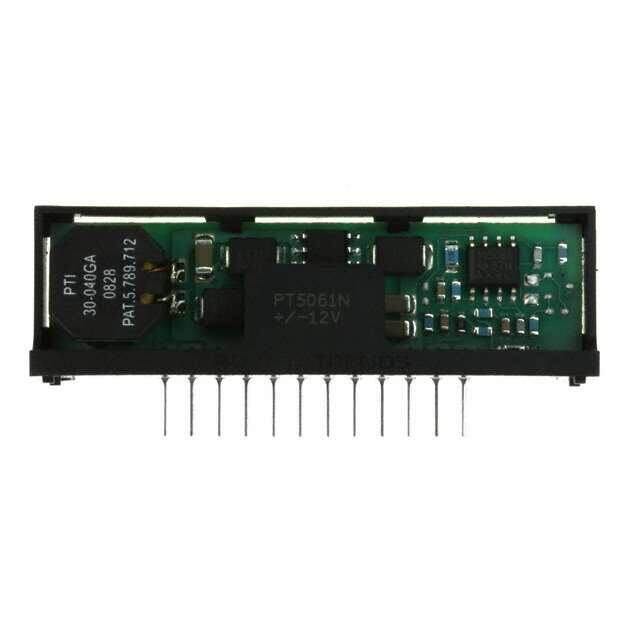

PT5061N
RoHS
RoHS compliant
RoHS compliantPackage 12-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
REG +-12V +.50-.25A VRT 12SIP
PDF
/
Inventory: 9282
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 12-SIP Module
Number of Pins 12
Weight 6.5g
Technical
Operating Temperature 0°C~85°C
Packaging Tray
Series PT5060 (9W)
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 12
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Subcategory Switching Regulator or Controllers
Max Power Dissipation 9W
Technology HYBRID
Terminal Position SINGLE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number PT5061
Pin Count 12
Number of Outputs 2
Qualification Status Not Qualified
Efficiency 85%
Voltage - Input (Max) 11V
Max Output Current 250mA
Voltage - Output 1 12V
Voltage - Input (Min) 4.75V
Input Voltage-Nom 5V
Current - Output (Max) 500mA 250mA
Output Power 9W
Voltage - Output 2 -12V
Control Mode VOLTAGE-MODE
Switcher Configuration BOOST
Switching Frequency-Max 650kHz
Dimensions
Length 67.8mm
Width 9.65mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
