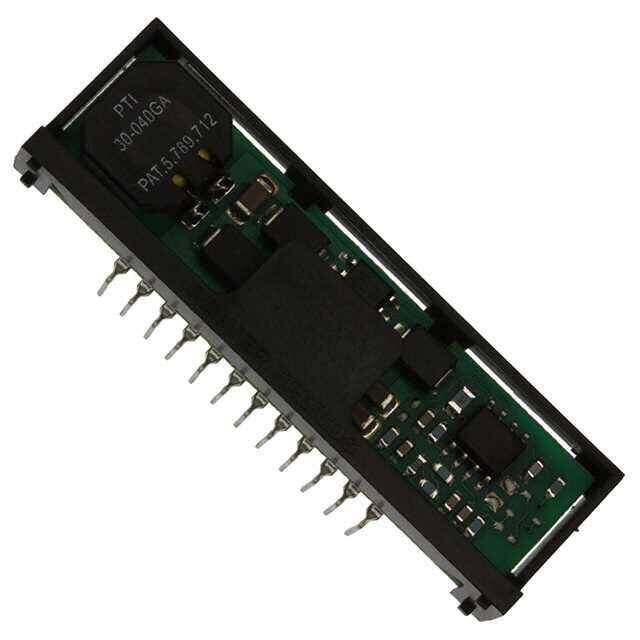

PT5061A
RoHS
RoHS compliant
RoHS compliantPackage 12-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
REG +-12V +.50 -.25A HRZ 12-SIP
PDF
/
Inventory: 6276
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole, Right Angle
Package / Case 12-SIP Module
Number of Pins 12
Weight 6.5g
Technical
Operating Temperature 0°C~85°C
Packaging Tray
Series PT5060 (9W)
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 12
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Subcategory Switching Regulator or Controllers
Max Power Dissipation 9W
Technology HYBRID
Terminal Position SINGLE
Number of Functions 1
Depth 17.01mm
Base Part Number PT5061
Pin Count 12
Number of Outputs 2
Efficiency 85%
Isolation Non-Isolated
Switching Frequency-Max 650kHz
Switcher Configuration BOOST
Nominal Input Voltage 5V
Current - Output 1 250mA
Control Mode VOLTAGE-MODE
Voltage - Output 2 -12V
Output Power 9W
Current - Output (Max) 500mA 250mA
Input Voltage-Nom 5V
Voltage - Input (Min) 4.75V
Voltage - Output 1 12V
Max Output Current 250mA
Voltage - Input (Max) 11V
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Width 9.65mm
Length 52.32mm
Alternative Model
