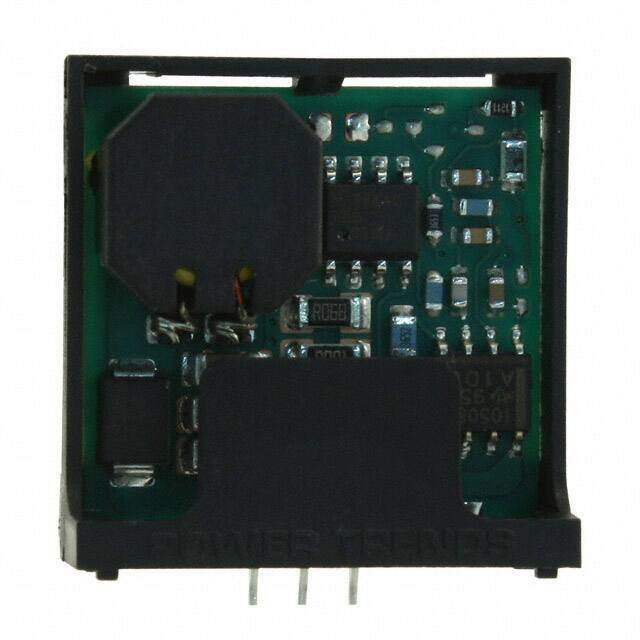

PT5041C image
Favorite
PT5041C image
Favorite
RoHS
RoHS RoHS compliant
Package 3-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description REG 5V TO 12V/15V 1A SIP SMD HRZ
PDF
/
Inventory: 3912
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Width 9.65mm
Length 25.4mm
Height 25.9mm

Technical

Isolation Non-Isolated
Switching Frequency-Max 800kHz
Control Mode VOLTAGE-MODE
Topology Boost
Output Current 1A
Input Voltage-Nom 5V
Voltage - Input (Min) 4.75V
Max Output Current 1A
Output Voltage 12V
Voltage - Input (Max) 11V
Efficiency 85%
Number of Outputs 1
Pin Count 3
Base Part Number PT5041
Current Rating 1A
Depth 25.14mm
Terminal Pitch 2.54mm
Number of Functions 1
Terminal Form GULL WING
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 12W
Subcategory Switching Regulator or Controllers
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series PT5040
Packaging Tray
Operating Temperature -20°C~85°C

Physical

Weight 4.5g
Number of Pins 3
Package / Case 3-SMD Module
Mounting Type Surface Mount
Mount Surface Mount
