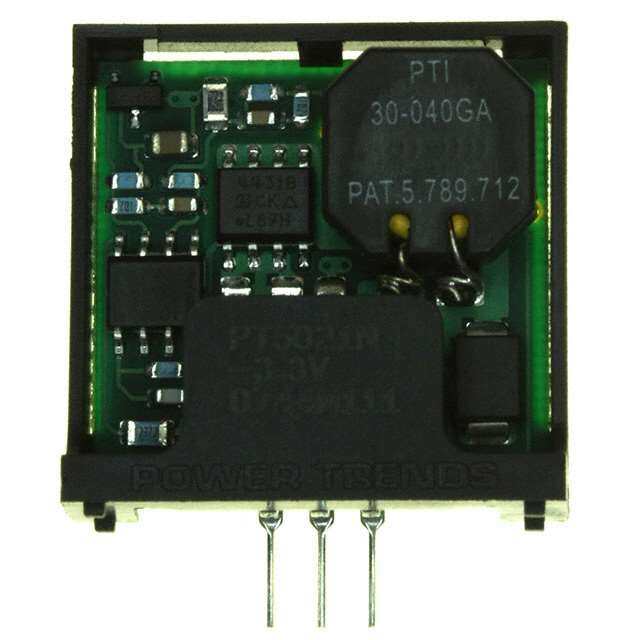

PT5027N
RoHS
RoHS compliant
RoHS compliantPackage 3-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER -8V .6A
PDF
/
Buying Options
Total Price: USD $21.86
Unit Price: USD $21.863026
≥1 USD $21.863026
≥10 USD $20.625496
≥100 USD $19.458012
≥500 USD $18.356618
≥1000 USD $17.317568
Inventory: 1338
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 9.65mm
Length 25.4mm
Height 25.9mm
Technical
Switching Frequency-Max 800kHz
Control Mode VOLTAGE-MODE
Topology Boost
Input Voltage-Nom 5V
Voltage - Input (Min) 4.75V
Max Output Current 600mA
Output Voltage -8V
Voltage - Input (Max) 7V
Efficiency 75%
Qualification Status Not Qualified
Number of Outputs 1
JESD-30 Code R-XSMA-T3
Pin Count 3
Base Part Number PT5027
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 4.8W
Subcategory Switching Regulator or Controllers
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series PT5020
Packaging Tray
Operating Temperature -20°C~85°C
Physical
Package / Case 3-SIP Module
Mounting Type Through Hole
Mount Through Hole
