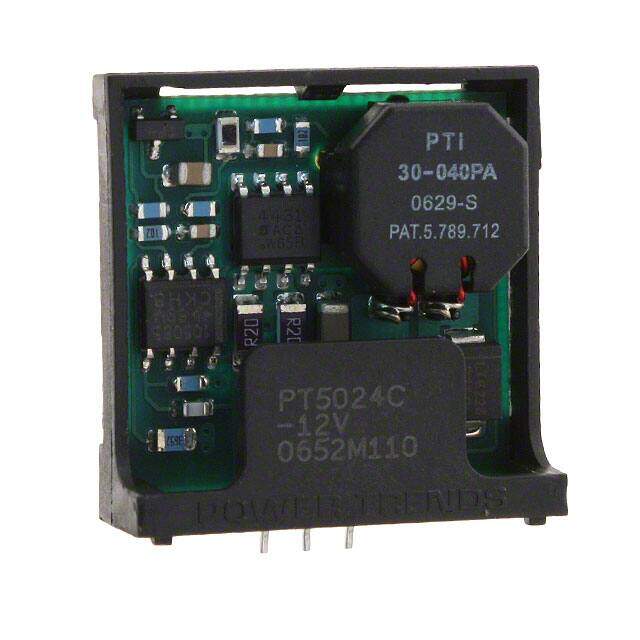

PT5024C
RoHS
RoHS compliant
RoHS compliantPackage 3-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
REG 5V TO -12V .50A SIP SMD HRZ
PDF
/
Inventory: 6375
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Technology HYBRID
Terminal Position SINGLE
Terminal Form GULL WING
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Terminal Pitch 2.54mm
Depth 25.14mm
Current Rating 500mA
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number PT5024
Pin Count 3
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 75%
Voltage - Input (Max) 7V
Output Voltage -12V
Max Output Current 500mA
Voltage - Input (Min) 4.75V
Input Voltage-Nom 5V
Output Current 500mA
Control Mode VOLTAGE-MODE
Switcher Configuration BUCK-BOOST
Switching Frequency-Max 800kHz
Max Power Dissipation 6W
Subcategory Switching Regulator or Controllers
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series PT5020
Packaging Tray
Operating Temperature -20°C~85°C
Dimensions
Length 25.65mm
Width 9.65mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Physical
Weight 4.5g
Number of Pins 3
Package / Case 3-SMD Module
Mounting Type Surface Mount
Mount Surface Mount
