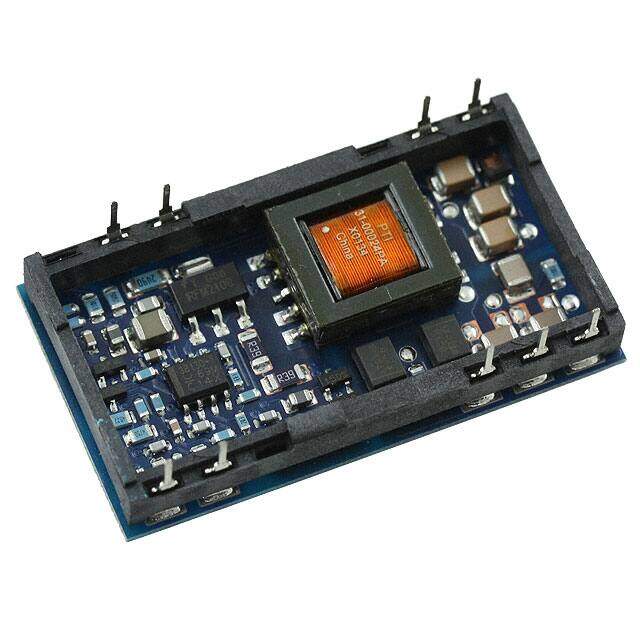

PT4311A
RoHS
RoHS compliant
RoHS compliantPackage 18-DIP Module, 9 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC-DC + - 5V 1.0A HRZ
PDF
/
Inventory: 3345
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Dimensions
Width 26.9mm
Length 48.26mm
Technical
Isolation Isolated
Total Power Output-Max 6W
Voltage - Output 2 -5V
Output Power 6W
Current - Output (Max) 1.2A 1.2A
Trim/Adjustable Output YES
Input Voltage-Nom 53V
Voltage - Input (Min) 38V
Voltage - Output 1 5V
Max Output Current 1.2A
Output Voltage 5V
Voltage - Input (Max) 75V
Voltage - Isolation 1.5kV
Efficiency 82%
Qualification Status Not Qualified
Number of Outputs 2
Pin Count 9
Base Part Number PT4311
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code not_compliant
Depth 26.92mm
Terminal Pitch 5.08mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 6W
Power Rating 6W
Subcategory Other Analog ICs
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 9
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code no
Feature UVLO
Series PT4310 (6W)
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Weight 10g
Number of Pins 9
Package / Case 18-DIP Module, 9 Leads
Mounting Type Through Hole, Right Angle
Mount Through Hole
