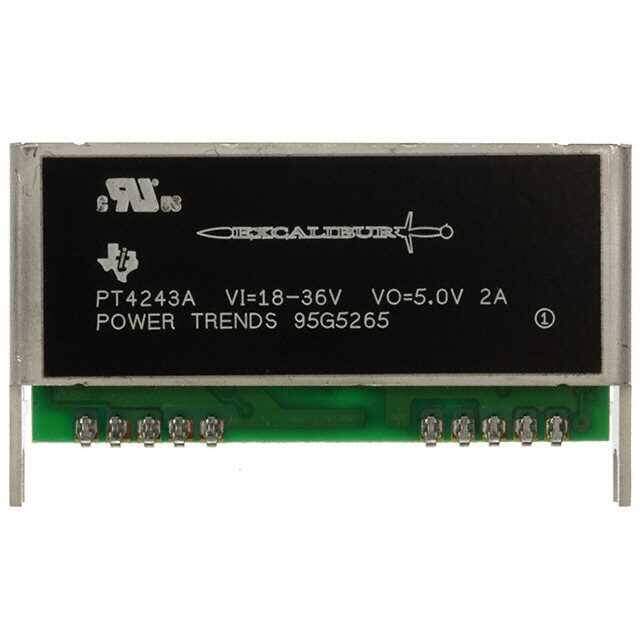

PT4243A
RoHS
RoHS compliant
RoHS compliantPackage 10-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 24VIN 2.0A HZ 10-SIP
PDF
/
Inventory: 3359
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 25.9mm
Length 48.26mm
Technical
Max Input Voltage (DC) 24V
Nominal Output Voltage 5V
Isolation Isolated
Max Output Power 10W
Current - Output 1 2A
Output Power 10W
Output Current 2A
Trim/Adjustable Output YES
Input Voltage-Nom 24V
Voltage - Input (Min) 18V
Max Output Current 2A
Output Voltage 5V
Voltage - Input (Max) 36V
Voltage - Isolation 1.5kV
Efficiency 84%
Number of Outputs 1
Pin Count 10
Base Part Number PT4243
Frequency 300kHz
Depth 30.22mm
Terminal Pitch 2.54mm
Number of Functions 1
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 10W
Power Rating 10W
Subcategory Other Analog ICs
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 10
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code no
Feature UVLO
Series Excalibur? PT4240 (10W)
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Weight 20g
Number of Pins 10
Package / Case 10-SIP Module
Mounting Type Through Hole, Right Angle
Mount Through Hole
