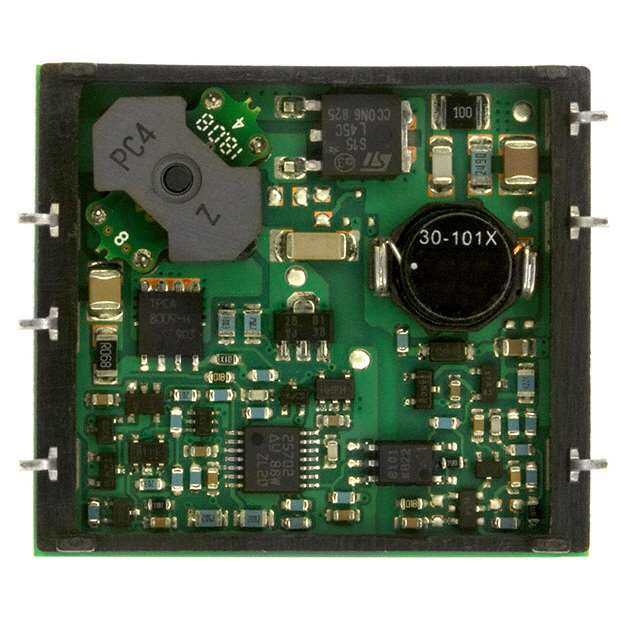

PT4146C
RoHS
RoHS compliant
RoHS compliantPackage 8-SMD Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC 1.5V 5A 24VIN HZ SMD
PDF
/
Buying Options
Total Price: USD $46.58
Unit Price: USD $46.576631
≥1 USD $46.576631
≥10 USD $43.940224
≥100 USD $41.453037
≥500 USD $39.106638
≥1000 USD $36.893056
Inventory: 1426
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 8-SMD Module, 6 Leads
Surface Mount YES
Number of Pins 6
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series PT4140 (20W)
Size / Dimension 1.67Lx1.48W x 0.34 H 42.4mmx37.6mmx8.6mm
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 20W
Subcategory Other Analog ICs
Power Rating 7.5W
Max Power Dissipation 7.5W
Technology HYBRID
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Depth 37.59mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number PT4146
Pin Count 6
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 67%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 40V
Output Voltage 1.5V
Max Output Current 5A
Voltage - Input (Min) 18V
Input Voltage-Nom 24V
Trim/Adjustable Output YES
Output Current 5A
Output Power 7.5W
Max Output Voltage 1.5V
Current - Output 1 5A
Nominal Input Voltage 24V
Min Output Voltage 1.5V
Isolation Isolated
Dimensions
Height 8.636mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
