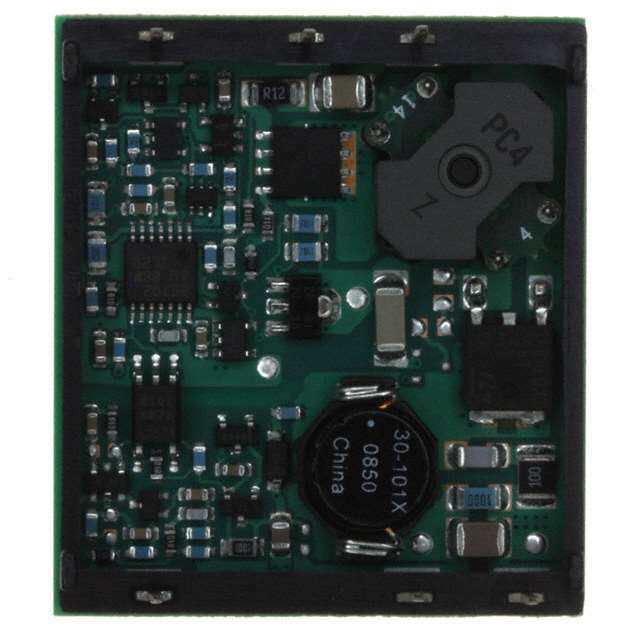

PT4126A
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
CONVERTER DC-DC 1.5V 5A HRZ
PDF
/
Inventory: 4675
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height 8.382mm
Technical
Min Input Voltage (DC) 36V
Max Input Voltage (DC) 75V
Nominal Output Voltage 1.5V
Isolation Isolated
Max Output Power 7.5W
Nominal Input Voltage 48V
Current - Output 1 5A
Output Power 7.5W
Output Current 5A
Trim/Adjustable Output YES
Input Voltage-Nom 48V
Max Output Current 5A
Output Voltage 1.5V
Voltage - Isolation 1.5kV
Efficiency 67%
Qualification Status Not Qualified
Number of Outputs 1
Pin Count 6
Base Part Number PT4126
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 37.59mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 7.5W
Power Rating 7.5W
Subcategory Other Analog ICs
Additional Feature SHORT CIRCUIT PROTECTION
Power (Watts) 20W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Size / Dimension 1.67Lx1.48W x 0.33 H 42.4mmx37.6mmx8.4mm
Series PT4120 (20W)
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Number of Pins 6
Package / Case 6-DIP Module
Mounting Type Through Hole
Mount Through Hole
