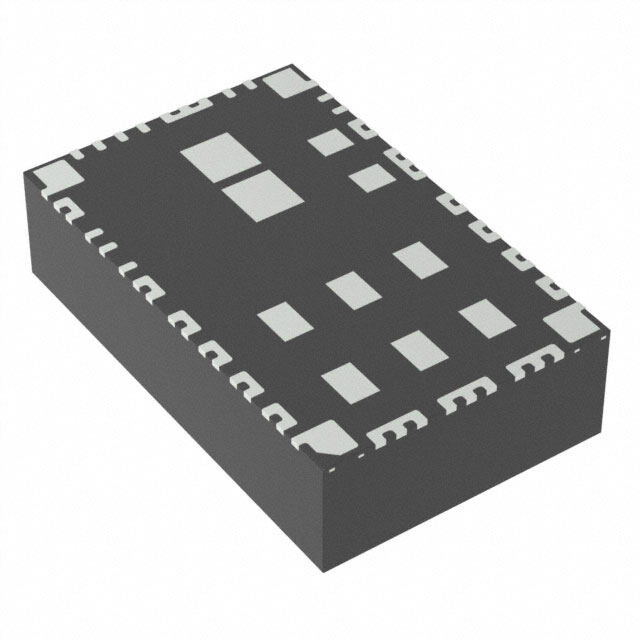

LMZM33604RLXR
RoHS
RoHS compliant
RoHS compliantPackage 41-PowerBQFN Module
Category Power Supplies - Board Mount / DC DC Converters
Description
3.5-V TO 36-V INPUT, 1-V TO 20-V
PDF
/
Buying Options
Total Price: USD $12.77
Unit Price: USD $12.7688
≥1 USD $12.7688
≥10 USD $11.73304
≥100 USD $11.246752
≥500 USD $9.909416
≥1000 USD $9.42304
Inventory: 313
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Switching Frequency-Max 2200kHz
Switcher Configuration BUCK
Control Technique PULSE WIDTH MODULATION
Current - Output (Max) 4A
Input Voltage-Nom 24V
Voltage - Input (Min) 3.5V
Voltage - Output 1 1V~20V
Voltage - Input (Max) 36V
Efficiency 91%
Number of Outputs 1
Base Part Number LMZM33604
Number of Functions 1
Terminal Form NO LEAD
Terminal Position UNSPECIFIED
Technology HYBRID
Applications ITE (Commercial)
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Type Non-Isolated PoL Module
Number of Terminations 41
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Feature Remote On/Off, OCP, OTP, OVP, UVLO
JESD-609 Code e4
Size / Dimension 0.63Lx0.39W x 0.16 H 16.0mmx10.0mmx4.1mm
Packaging Tape & Reel (TR)
Operating Temperature -40°C~105°C
Physical
Surface Mount YES
Package / Case 41-PowerBQFN Module
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 8 Weeks
