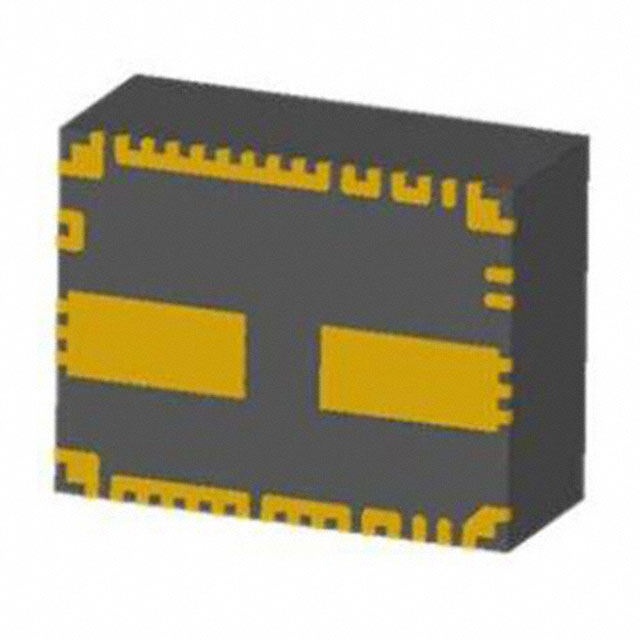

LMZM33602RLRR
RoHS
RoHS compliant
RoHS compliantPackage 18-PowerBQFN Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 1-18V
PDF
/
Buying Options
Total Price: USD $8.03
Unit Price: USD $8.0344
≥1 USD $8.0344
≥10 USD $7.26176
≥100 USD $6.92384
≥500 USD $6.011808
≥1000 USD $5.741648
Inventory: 1805
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Thickness 3.8mm
Width 7mm
Height 3.9mm
Technical
Ambient Temperature Range High 105°C
Max Junction Temperature (Tj) 125°C
Control Technique PULSE WIDTH MODULATION
Topology Buck-Boost
Output Current 2A
Min Supply Voltage 4V
Max Supply Voltage 36V
Input Voltage-Nom 24V
Voltage - Input (Min) 4V
Voltage - Output 1 1V~18V
Output Voltage 18V
Efficiency 94%
Number of Outputs 1
Base Part Number LMZM33602
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) 250
Terminal Form BUTT
Terminal Position QUAD
Applications ITE (Commercial)
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 18
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Feature OCP, OTP, UVLO
JESD-609 Code e4
Size / Dimension 0.35Lx0.28W x 0.16 H 9.0mmx7.0mmx4.1mm
Packaging Tape & Reel (TR)
Operating Temperature -40°C~105°C
Physical
Number of Pins 18
Surface Mount YES
Package / Case 18-PowerBQFN Module
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Factory Lead Time 8 Weeks
