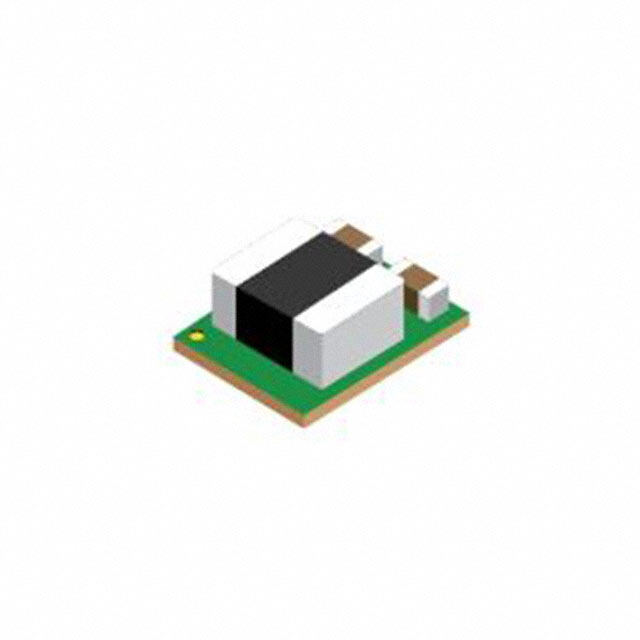

LMZM23600SILT
RoHS
/
Package 10-LDFN Exposed Pad, Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 2.5-15V
PDF
/
Buying Options
Total Price: USD $4.96
Unit Price: USD $4.9632
≥1 USD $4.9632
≥10 USD $4.4572
≥100 USD $4.21344
≥500 USD $3.651736
Inventory: 870
Minimum: 1
-
+
Technical Details
Dimensions
Width 3mm
Length 3.8mm
Technical
Switcher Configuration BUCK
Control Technique PULSE WIDTH MODULATION
Control Mode CURRENT-MODE
Current - Output (Max) 500mA
Input Voltage-Nom 24V
Voltage - Input (Min) 4V
Voltage - Output 1 2.5V~15V
Voltage - Input (Max) 36V
Number of Outputs 1
Base Part Number LMZM23600
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code compliant
Terminal Pitch 0.6mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form NO LEAD
Terminal Position UNSPECIFIED
Additional Feature PFM TECHNIQUE ALSO USED
Applications ITE (Commercial)
Type Non-Isolated PoL Module
Number of Terminations 10
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Feature OCP, SCP, UVLO
Size / Dimension 0.15Lx0.12W x 0.06 H 3.8mmx3.0mmx1.6mm
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Surface Mount YES
Package / Case 10-LDFN Exposed Pad, Module
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
