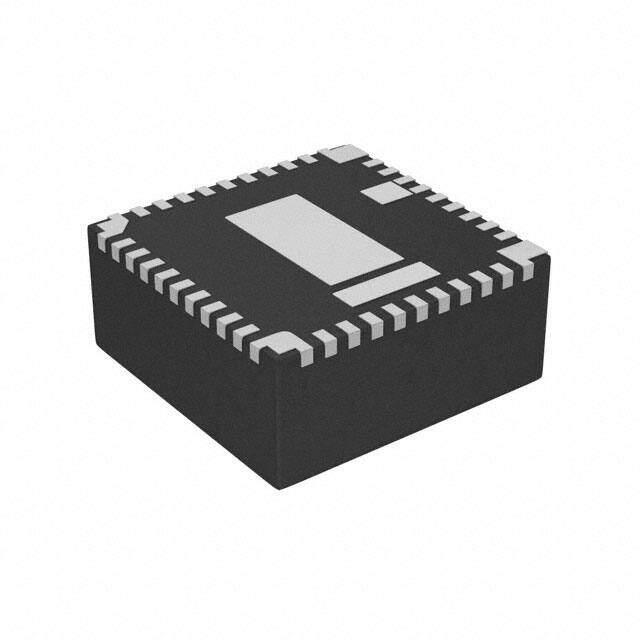

LMZ34202RVQR
RoHS
RoHS compliant
RoHS compliantPackage 43-BQFN Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 2.5-7.5V
PDF
/
Buying Options
Total Price: USD $7.98
Unit Price: USD $7.9816
≥1 USD $7.9816
≥10 USD $7.21336
≥100 USD $6.87808
≥500 USD $5.972296
≥1000 USD $5.703878
Inventory: 263
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 43-BQFN Module
Number of Pins 43
Technical
Operating Temperature -40°C~105°C
Packaging Tape & Reel (TR)
Series SIMPLE SWITCHER?
Size / Dimension 0.39Lx0.39W x 0.17 H 10.0mmx10.0mmx4.3mm
JESD-609 Code e4
Feature Remote On/Off, OCP, OTP, UVLO
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 43
Type Non-Isolated PoL Module
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Applications ITE (Commercial)
Additional Feature SEATED HGT-NOM, ALSO OPTS IN PFM CTRL TCHQ, ALS OPTS IN ADJ MODE FROM 2.5 TO 7.5V
Terminal Position UNSPECIFIED
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) 245
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number LMZ34202
Number of Outputs 1
Efficiency 92%
Voltage - Input (Max) 42V
Output Voltage 5V
Max Output Current 2A
Voltage - Output 1 2.5V~7.5V
Voltage - Input (Min) 4.5V
Input Voltage-Nom 24V
Control Features Enable, Active High
Control Technique PULSE WIDTH MODULATION
Switcher Configuration BUCK
Dimensions
Height 4.4mm
Thickness 4.3mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
