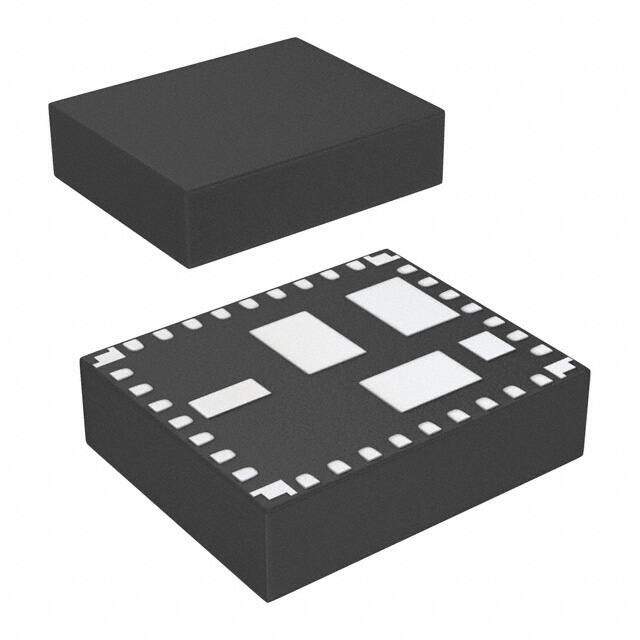

LMZ34002RKGT
RoHS
RoHS compliant
RoHS compliantPackage 41-BQFN Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Module DC-DC 1-OUT -3V to -17V 2A 41-Pin B1QFN
PDF
/
Buying Options
Total Price: USD $11.5
Unit Price: USD $11.5016
≥1 USD $11.5016
≥10 USD $11.41184
≥100 USD $11.32472
≥500 USD $11.150656
≥1000 USD $10.802
≥3000 USD $9.756736
Inventory: 1262
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 41-BQFN Module
Number of Pins 41
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Series SIMPLE SWITCHER?
Size / Dimension 0.44Lx0.36W x 0.11 H 11.2mmx9.2mmx2.9mm
JESD-609 Code e4
Feature Remote On/Off, OCP, OTP, UVLO
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 41
ECCN Code EAR99
Type Non-Isolated PoL Module
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Applications ITE (Commercial)
Subcategory Switching Regulator or Controllers
Max Power Dissipation 34W
Terminal Position QUAD
Peak Reflow Temperature (Cel) 250
Number of Functions 1
Terminal Pitch 0.9mm
Depth 9.15mm
Base Part Number LMZ34002
Number of Outputs 1
Efficiency 86%
Output Voltage -17V
Output Type Adjustable
Max Output Current 2A
Voltage - Output 1 -3V~-17V
Input Voltage-Nom 12V
Output Current 2A
Control Features Enable, Active High
Max Output Voltage -3V
Topology Boost
Control Mode VOLTAGE-MODE
Min Output Voltage -17V
Isolation Non-Isolated
Max Input Voltage (DC) 40V
Min Input Voltage (DC) 4.5V
Switching Frequency 900kHz
Dimensions
Height 2.9mm
Thickness 2.8mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
