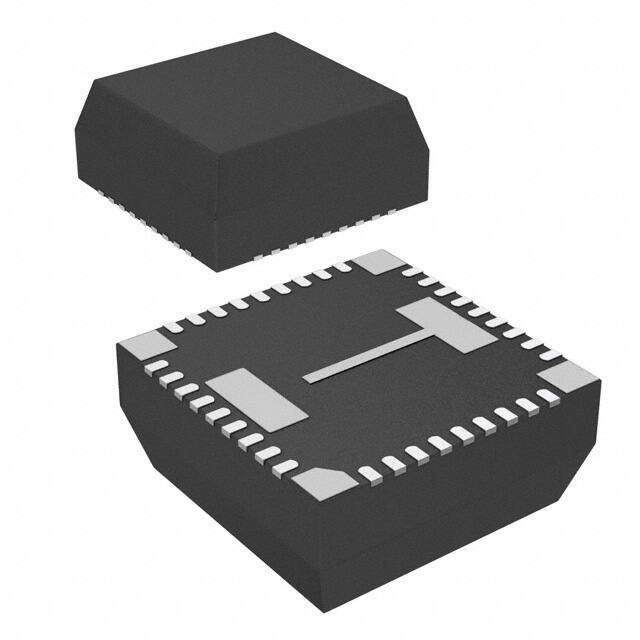

LMZ31707RVQT
RoHS
RoHS compliant
RoHS compliantPackage 42-BQFN Module
Category Power Supplies - Board Mount / DC DC Converters
Description
2.95V to 17V, 7A Step-Down Power Module with Current Sharing in 10x10x4.3mm QFN Package 42-B3QFN -40 to 85
PDF
/
Buying Options
Total Price: USD $9.59
Unit Price: USD $9.59482
≥1 USD $9.59482
≥10 USD $9.05172
≥100 USD $8.53936
≥500 USD $8.056
≥1000 USD $7.6
≥3000 USD $7.16981
Inventory: 3187
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Thickness 4.3mm
Height 4.4mm
Technical
Switching Frequency 1.2MHz
Min Input Voltage (DC) 2.95V
Max Input Voltage (DC) 17V
Min Output Voltage 600mV
Max Output Voltage 5.5V
Control Features Enable, Active High
Output Current 7A
Operating Supply Voltage 17V
Voltage - Output 1 0.6V~5.5V
Max Output Current 7A
Output Type Adjustable
Output Voltage 5.5V
Efficiency 95%
Number of Outputs 1
Base Part Number LMZ31707
Depth 10.15mm
Number of Functions 1
Peak Reflow Temperature (Cel) 245
Terminal Position QUAD
Max Power Dissipation 39W
Applications ITE (Commercial)
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Type Non-Isolated PoL Module
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Feature OCP, OTP, UVLO
JESD-609 Code e4
Size / Dimension 0.40Lx0.40W x 0.17 H 10.2mmx10.2mmx4.4mm
Series SIMPLE SWITCHER?
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Number of Pins 42
Package / Case 42-BQFN Module
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 8 Weeks
