LMZ31530RLGT
RoHS
RoHS compliant
RoHS compliantPackage 72-BQFN Module
Category Power Supplies - Board Mount / DC DC Converters
Description

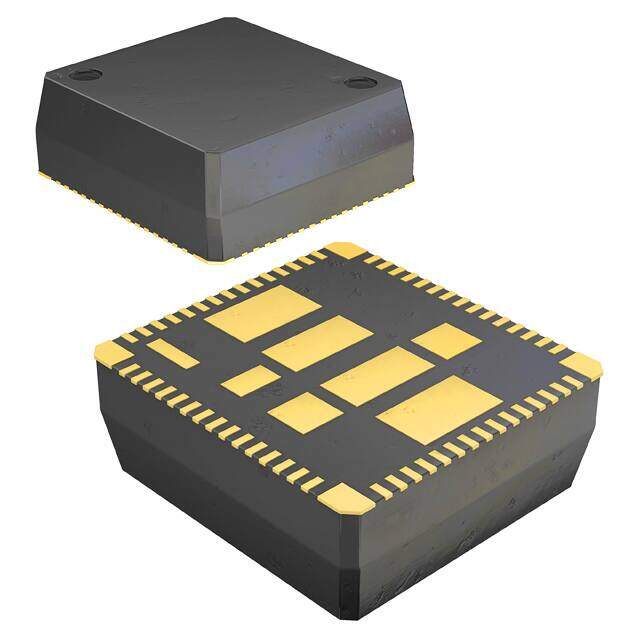

TEXAS INSTRUMENTS LMZ31530RLGT DC-DC CONV, NON ISO POL, 1 O/P, 30A
PDF
/
Buying Options
Total Price: USD $20.22
Unit Price: USD $20.2224
≥1 USD $20.2224
≥10 USD $20.064
≥100 USD $19.90912
≥500 USD $19.597952
≥1000 USD $18.6648
≥3000 USD $17.1094
Inventory: 5271
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Thickness 5.8mm
Height 5.9mm
Technical
Switching Frequency 850kHz
Min Input Voltage (DC) 3V
Max Input Voltage (DC) 14.5V
Isolation Non-Isolated
Switcher Configuration SINGLE
Min Output Voltage 600mV
Control Mode VOLTAGE-MODE
Max Output Voltage 3.6V
Output Current 20A
Operating Supply Current 30A
Min Supply Voltage 3V
Input Voltage-Nom 12V
Operating Supply Voltage 14.5V
Voltage - Output 1 0.6V~3.6V
Max Output Current 30A
Output Type Adjustable
Output Voltage 3.6V
Efficiency 96%
Number of Outputs 1
Base Part Number LMZ31530
Depth 16mm
Terminal Pitch 0.8mm
Number of Functions 1
Peak Reflow Temperature (Cel) 245
Terminal Position BOTTOM
Max Power Dissipation 108W
Subcategory Switching Regulator or Controllers
Applications ITE (Commercial)
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 72
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Feature Remote On/Off, OCP, OTP, UVLO
JESD-609 Code e4
Size / Dimension 0.64Lx0.60W x 0.23 H 16.2mmx15.2mmx5.9mm
Series SIMPLE SWITCHER?
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Number of Pins 72
Package / Case 72-BQFN Module
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Factory Lead Time 8 Weeks
Alternative Model
