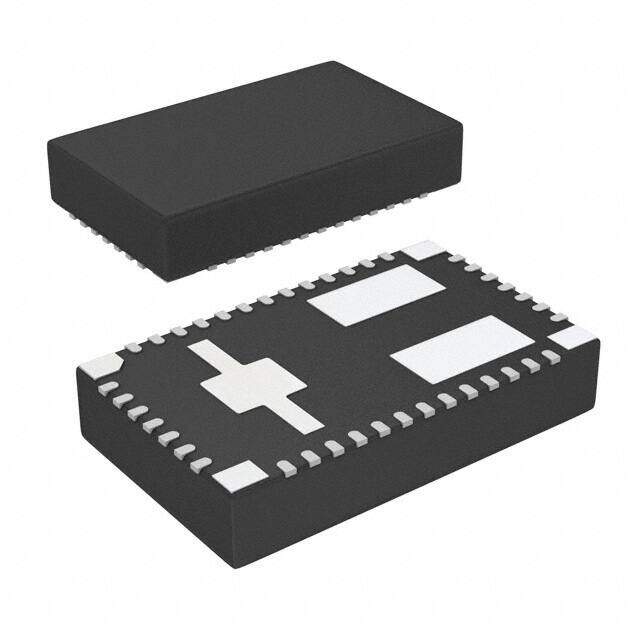

LMZ31503RUQT
RoHS
RoHS compliant
RoHS compliantPackage 47-BQFN Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Module DC-DC 1-OUT 0.8V to 5.5V 3A 47-Pin B1QFN T/R
PDF
/
Buying Options
Total Price: USD $5.45
Unit Price: USD $5.4472
≥1 USD $5.4472
Inventory: 6664
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Thickness 2.8mm
Height 2.9mm
Technical
Switching Frequency 780kHz
Min Input Voltage (DC) 1.6V
Max Input Voltage (DC) 14.5V
Isolation Non-Isolated
Min Output Voltage 800mV
Control Mode VOLTAGE-MODE
Max Output Voltage 5.5V
Control Features Enable, Active High
Output Current 3A
Operating Supply Current 100μA
Min Supply Voltage 4.5V
Input Voltage-Nom 12V
Voltage - Output 1 0.8V~5.5V
Max Output Current 3A
Output Type Adjustable
Output Voltage 5.5V
Efficiency 93.3%
Number of Outputs 1
Base Part Number LMZ31503
Depth 9.15mm
Terminal Pitch 0.9mm
Number of Functions 1
Peak Reflow Temperature (Cel) 245
Terminal Position UNSPECIFIED
Max Power Dissipation 17W
Subcategory Switching Regulator or Controllers
Applications ITE (Commercial)
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 47
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Feature OCP, OTP, UVLO
JESD-609 Code e4
Size / Dimension 0.60Lx0.36W x 0.11 H 15.2mmx9.2mmx2.9mm
Series SIMPLE SWITCHER?
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Number of Pins 47
Package / Case 47-BQFN Module
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Factory Lead Time 8 Weeks
Alternative Model
