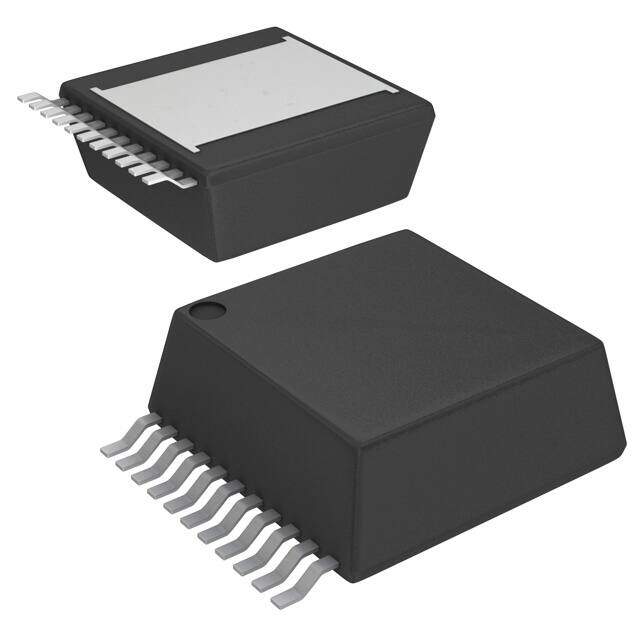

LMZ23608TZ/NOPB image
Favorite
LMZ23608TZ/NOPB image
Favorite

LMZ23608TZ/NOPB

Texas Instruments
RoHS
RoHS RoHS compliant
Package TO-PMOD-11, Power Module
Category Power Supplies - Board Mount / DC DC Converters
Description DC DC CONVERTER 0.8-6V 8A
PDF
/
Buying Options
Total Price: USD $19.29
Unit Price: USD $19.2896
≥1 USD $19.2896
≥10 USD $19.14528
≥100 USD $18.99656
≥500 USD $18.699454
≥1000 USD $17.808859
≥3000 USD $16.324827
Inventory: 171
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Thickness 5.9mm
Height 6.13mm

Technical

Switching Frequency 600kHz
Isolation Non-Isolated
Switcher Configuration BUCK
Min Output Voltage 800mV
Control Technique PULSE WIDTH MODULATION
Control Mode VOLTAGE-MODE
Max Output Voltage 6V
Output Power 40W
Output Current 8A
Input Voltage-Nom 12V
Voltage - Output 1 0.8V~6V
Max Output Current 8A
Output Type Adjustable
Output Voltage 6V
Voltage - Input (Max) 36V
Efficiency 93%
Number of Outputs 1
Base Part Number LMZ23608
Depth 15mm
Number of Functions 1
Peak Reflow Temperature (Cel) 245
Terminal Form GULL WING
Terminal Position SINGLE
Max Power Dissipation 40W
Subcategory Switching Regulator or Controllers
HTS Code 8504.40.95.80
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 11
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Size / Dimension 0.59Lx0.59W x 0.23 H 15.0mmx15.0mmx5.9mm
Series SIMPLE SWITCHER?
Packaging Tube
Operating Temperature -40°C~125°C

Physical

Number of Pins 11
Package / Case TO-PMOD-11, Power Module
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Tin

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Factory Lead Time 6 Weeks
