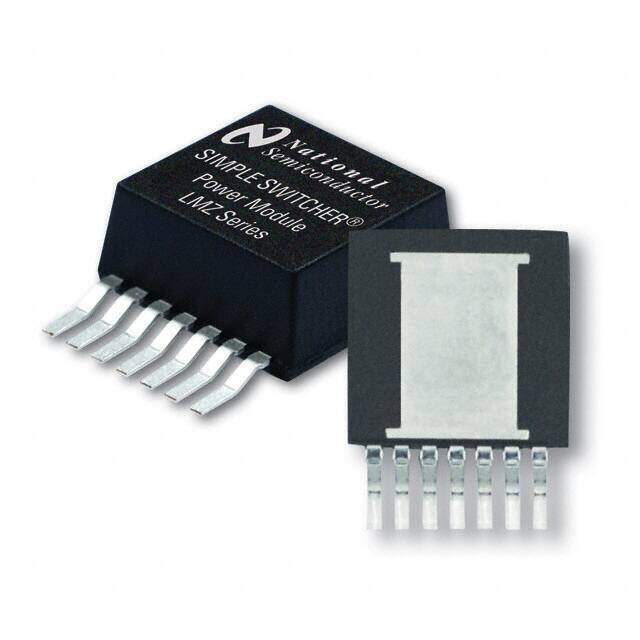

LMZ10503EXTTZ/NOPB

Texas Instruments
RoHS
RoHS RoHS compliant
Package TO-PMOD-7, Power Module
Category Power Supplies - Board Mount / DC DC Converters
Description DC DC CONVERTER 0.8-5V 3A
PDF
/
Buying Options
Total Price: USD $14.68
Unit Price: USD $14.6784
≥1 USD $14.6784
≥10 USD $14.56752
≥100 USD $14.454
≥500 USD $14.228192
≥1000 USD $13.550592
≥3000 USD $12.421464
Inventory: 511
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Thickness 4.57mm
Height 4.8mm

Technical

Switching Frequency 1MHz
Isolation Non-Isolated
Switcher Configuration BUCK
Min Output Voltage 800mV
Current - Output 1 3A
Control Technique PULSE WIDTH MODULATION
Control Mode VOLTAGE-MODE
Max Output Voltage 5V
Control Features Enable, Active High
Output Power 15W
Quiescent Current 1.7mA
Output Current 3A
Input Voltage-Nom 3.3V
Voltage - Input (Min) 2.95V
Voltage - Output 1 0.8V~5V
Max Output Current 3A
Output Voltage 5V
Voltage - Input (Max) 5.5V
Efficiency 96%
Number of Outputs 1
Base Part Number LMZ10503
Depth 9.85mm
Number of Functions 1
Peak Reflow Temperature (Cel) 245
Terminal Form GULL WING
Terminal Position SINGLE
Max Power Dissipation 15W
Subcategory Switching Regulator or Controllers
HTS Code 8504.40.95.80
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 7
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Feature UVLO
JESD-609 Code e3
Size / Dimension 0.40Lx0.39W x 0.18 H 10.2mmx9.9mmx4.6mm
Series SIMPLE SWITCHER?
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C

Physical

Number of Pins 7
Package / Case TO-PMOD-7, Power Module
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Tin

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 6 Weeks
