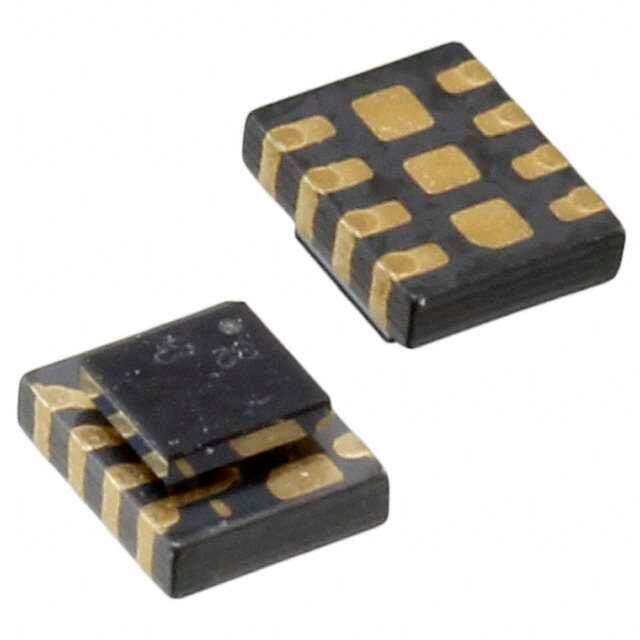

LMZ10500SHX/NOPB
RoHS
RoHS compliant
RoHS compliantPackage 8-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Conv DC-DC Single Step Down 2.7V to 5.5V Nano Module 8-Pin POS T/R
PDF
/
Inventory: 7825
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 8-SMD Module
Number of Pins 8
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series SIMPLE SWITCHER?
Size / Dimension 0.12Lx0.10W x 0.06 H 3.0mmx2.6mmx1.5mm
Feature OCP, OTP, UVLO
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 8
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Subcategory Switching Regulator or Controllers
Terminal Position DUAL
Peak Reflow Temperature (Cel) 260
Terminal Pitch 0.635mm
Base Part Number LMZ10500
Number of Outputs 1
Efficiency 95%
Voltage - Input (Max) 5.5V
Output Voltage 3.6V
Max Output Current 650mA
Voltage - Output 1 0.6V~3.6V
Voltage - Input (Min) 2.7V
Control Features Enable, Active High
Control Mode CURRENT-MODE
Switching Frequency 2.25MHz
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Contains Lead
Alternative Model
