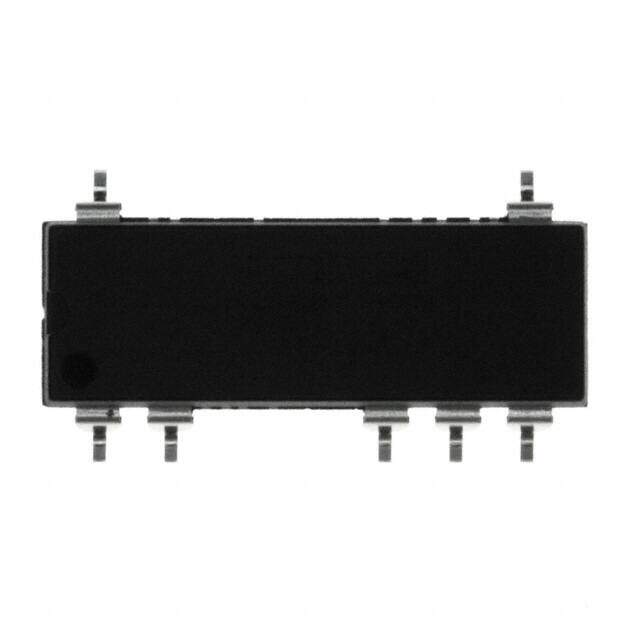

DCV010515P-U
RoHS
RoHS compliant
RoHS compliantPackage 14-SMD Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
IC REG ISOLATED 15V 67MA 7SOP
PDF
/
Buying Options
Total Price: USD $11.88
Unit Price: USD $11.88
≥1 USD $11.88
≥10 USD $11.78848
≥100 USD $11.69872
≥500 USD $11.518848
≥1000 USD $11.158928
≥3000 USD $10.078992
Inventory: 133
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Physical
Mounting Type Surface Mount
Package / Case 14-SMD Module, 7 Leads
Surface Mount YES
Number of Pins 7
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Series DCV01 (1W)
Size / Dimension 0.78Lx0.33W x 0.21 H 19.7mmx8.3mmx5.3mm
JESD-609 Code e4
Feature OTP, SCP
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 7
ECCN Code EAR99
Type Isolated Module
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Applications ITE (Commercial)
Additional Feature SHORT-CIRCUIT PROTECTION
Subcategory Other Analog ICs
Max Power Dissipation 1W
Technology BCDMOS
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Terminal Pitch 2.54mm
Frequency 800kHz
Base Part Number DCV010515
Number of Outputs 1
Approval Agency UL
Efficiency 84%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 5.5V
Output Voltage 14.25V
Output Type Fixed
Max Output Current 67mA
Voltage - Output 1 15V
Voltage - Input (Min) 4.5V
Input Voltage-Nom 5V
Trim/Adjustable Output NO
Output Current 67mA
Quiescent Current 34mA
Output Power 1W
Control Features Enable, Active High
Max Output Voltage 15.75V
Protections THERMAL
Control Mode VOLTAGE
Current - Output 1 67mA
Min Output Voltage 14.25V
Max Output Power 970mW
Switching Frequency 400kHz
Dimensions
Height 5.33mm
Thickness 3.94mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
