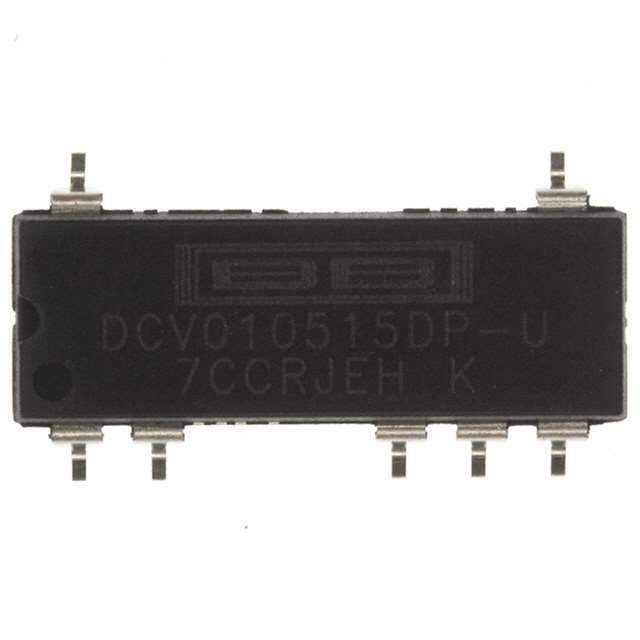

DCV010515DP-U
RoHS
RoHS compliant
RoHS compliantPackage 14-SMD Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
IC, ISOLATED DC/DC CONVERTER, SOP-14
PDF
/
Buying Options
Total Price: USD $11.59
Unit Price: USD $11.5896
≥1 USD $11.5896
≥10 USD $11.49808
≥100 USD $11.41008
≥500 USD $11.234432
≥1000 USD $10.883312
≥3000 USD $9.830128
Inventory: 95
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Physical
Mounting Type Surface Mount
Package / Case 14-SMD Module, 7 Leads
Surface Mount YES
Number of Pins 7
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Series DCV01 (1W)
Size / Dimension 0.78Lx0.33W x 0.21 H 19.7mmx8.3mmx5.3mm
JESD-609 Code e4
Feature OTP, SCP
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 7
ECCN Code EAR99
Type Isolated Module
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Applications ITE (Commercial)
Additional Feature ADDITIONAL -15 V OUTPUT AVAILABLE
Subcategory Other Analog ICs
Max Power Dissipation 1W
Technology BCDMOS
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Frequency 800kHz
Base Part Number DCV010515
Number of Outputs 2
Approval Agency UL
Efficiency 85%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 5.5V
Output Voltage 15.75V
Output Type Fixed
Max Output Current 33mA
Voltage - Output 1 15V
Voltage - Input (Min) 4.5V
Input Voltage-Nom 5V
Trim/Adjustable Output NO
Current - Output (Max) 33mA 33mA
Output Current 33mA
Quiescent Current 42mA
Output Power 1W
Control Features Enable, Active High
Max Output Voltage 15.75V
Protections THERMAL
Voltage - Output 2 -15V
Control Mode VOLTAGE
Current - Output 1 33mA
Min Output Voltage 14.25V
Max Output Power 970mW
Current - Output 2 30mA
Switching Frequency 400kHz
Dimensions
Height 5.33mm
Length 19.18mm
Width 6.61mm
Thickness 3.94mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Alternative Model
