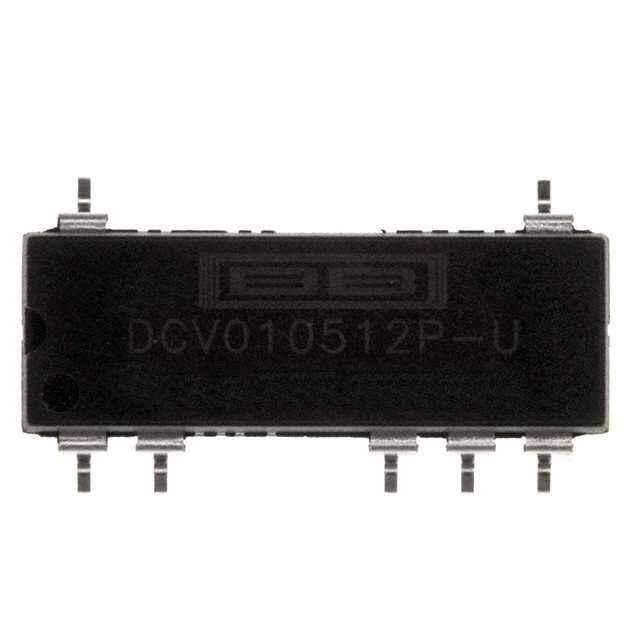

DCV010512P-U

Texas Instruments
RoHS
RoHS RoHS compliant
Package 14-SMD Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description IC, 1W ISO MINI DC/DC 14-SOP
PDF
/
Buying Options
Total Price: USD $13.35
Unit Price: USD $13.3496
≥1 USD $13.3496
≥10 USD $13.244
≥100 USD $13.1428
≥500 USD $12.940928
≥1000 USD $12.53648
≥3000 USD $11.323312
Inventory: 457
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Thickness 3.94mm
Height 5.33mm

Technical

Switching Frequency 400kHz
Max Output Power 970mW
Min Output Voltage 11.4V
Current - Output 1 83mA
Control Mode VOLTAGE
Protections THERMAL
Max Output Voltage 12.6V
Control Features Enable, Active High
Output Power 1W
Quiescent Current 30mA
Output Current 86mA
Min Supply Voltage 4.5V
Max Supply Voltage 5.5V
Trim/Adjustable Output NO
Input Voltage-Nom 5V
Voltage - Output 1 12V
Max Output Current 83mA
Output Type Fixed
Output Voltage 12.6V
Voltage - Input (Max) 5.5V
Voltage - Isolation 1.5kV
Efficiency 85%
Approval Agency UL
Number of Outputs 1
Base Part Number DCV010512
Frequency 800kHz
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Technology BCDMOS
Max Power Dissipation 1W
Subcategory Other Analog ICs
Additional Feature SHORT-CIRCUIT PROTECTION
Applications ITE (Commercial)
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Type Isolated Module
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 7
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Feature OTP, SCP
JESD-609 Code e4
Size / Dimension 0.78Lx0.33W x 0.21 H 19.7mmx8.3mmx5.3mm
Series DCV01 (1W)
Packaging Tube
Operating Temperature -40°C~85°C

Physical

Number of Pins 7
Surface Mount YES
Package / Case 14-SMD Module, 7 Leads
Mounting Type Surface Mount

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Factory Lead Time 6 Weeks

Alternative Model
