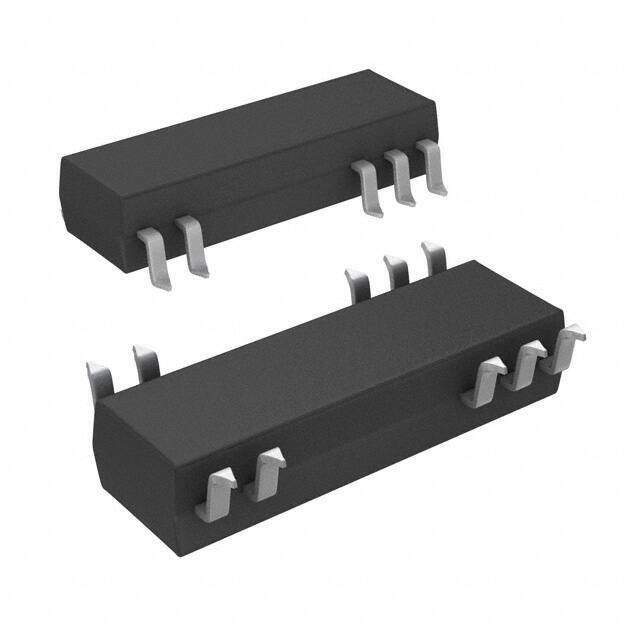

DCR021205P-U image
Favorite
DCR021205P-U image
Favorite

DCR021205P-U

Texas Instruments
RoHS
RoHS RoHS compliant
Package 18-SMD Module, 10 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description DC DC CONVERTER 5V 2W
PDF
/
Buying Options
Total Price: USD $10.57
Unit Price: USD $10.5688
≥1 USD $10.5688
Inventory: 1128
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 12 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 day ago)

Physical

Contact Plating Gold
Mounting Type Surface Mount
Package / Case 18-SMD Module, 10 Leads
Surface Mount YES
Number of Pins 10

Technical

Operating Temperature -40°C~70°C
Packaging Tube
Series DCR02 (2W)
Size / Dimension 0.90Lx0.28W x 0.21 H 22.9mmx7.1mmx5.3mm
JESD-609 Code e4
Feature Remote On/Off, OTP, SCP
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 10
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Subcategory Other Analog ICs
Power Rating 2W
Max Power Dissipation 2W
Technology HYBRID
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Terminal Pitch 2.54mm
Depth 23.37mm
Frequency 400kHz
Base Part Number DCR021205
Number of Outputs 1
Approval Agency UL
Voltage - Isolation 1kV
Voltage - Input (Max) 13.2V
Output Voltage 5.1V
Output Type Fixed
Max Output Current 400mA
Voltage - Input (Min) 10.8V
Input Voltage-Nom 12V
Trim/Adjustable Output NO
Output Current 400mA
Quiescent Current 15mA
Output Power 2W
Max Output Voltage 5.1V
Protections THERMAL
Control Mode VOLTAGE
Current - Output 1 400mA
Min Output Voltage 4.9V
Max Output Power 2W
Nominal Output Voltage 5V
Max Input Voltage (DC) 12V
Switching Frequency 400kHz

Dimensions

Height 5.33mm
Length 6.6mm
Width 22.36mm
Thickness 3.94mm

Compliance

Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
