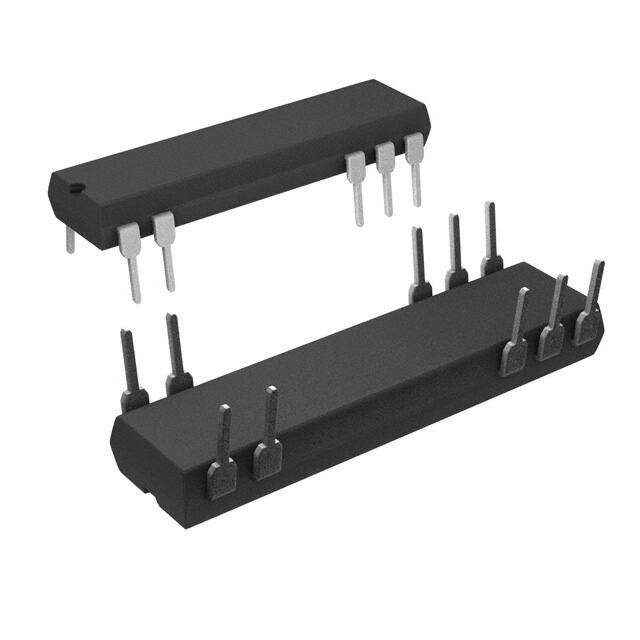

DCR010503P

Texas Instruments
RoHS
RoHS RoHS compliant
Package 18-DIP Module, 10 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description TEXAS INSTRUMENTS - DCR010503P - ISOLATED REGULATED DC/DC CONVERTER, 14 DIP
PDF
/
Buying Options
Total Price: USD $12.17
Unit Price: USD $12.1704
≥1 USD $12.1704
≥10 USD $12.08064
≥100 USD $11.9878
≥500 USD $11.4345
≥1000 USD $10.327856
≥3000 USD $10.143426
Inventory: 134
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 12 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)

Physical

Mounting Type Through Hole
Package / Case 18-DIP Module, 10 Leads
Surface Mount NO
Number of Pins 10

Technical

Operating Temperature -40°C~85°C
Packaging Tube
Series DCR01 (1W)
Size / Dimension 0.90Lx0.28W x 0.21 H 22.9mmx7.1mmx5.3mm
JESD-609 Code e4
Feature Remote On/Off, OTP, SCP
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 10
ECCN Code EAR99
Type Isolated Module
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Applications ITE (Commercial)
Subcategory Other Analog ICs
Max Power Dissipation 1W
Technology HYBRID
Terminal Position DUAL
Number of Functions 1
Terminal Pitch 2.54mm
Base Part Number DCR010503
Number of Outputs 1
Voltage - Isolation 1kV
Voltage - Input (Max) 5.5V
Output Voltage 3.366V
Output Type Fixed
Max Output Current 300mA
Voltage - Input (Min) 4.5V
Input Voltage-Nom 5V
Trim/Adjustable Output NO
Output Current 300mA
Quiescent Current 24mA
Output Power 1W
Control Features Enable, Active High
Max Output Voltage 3.366V
Protections THERMAL
Control Mode VOLTAGE
Current - Output 1 300mA
Min Output Voltage 3.234V
Max Output Power 1W
Nominal Output Voltage 3.3V
Switching Frequency 400kHz

Dimensions

Height 4.95mm
Length 22.86mm
Thickness 3.94mm

Compliance

Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
