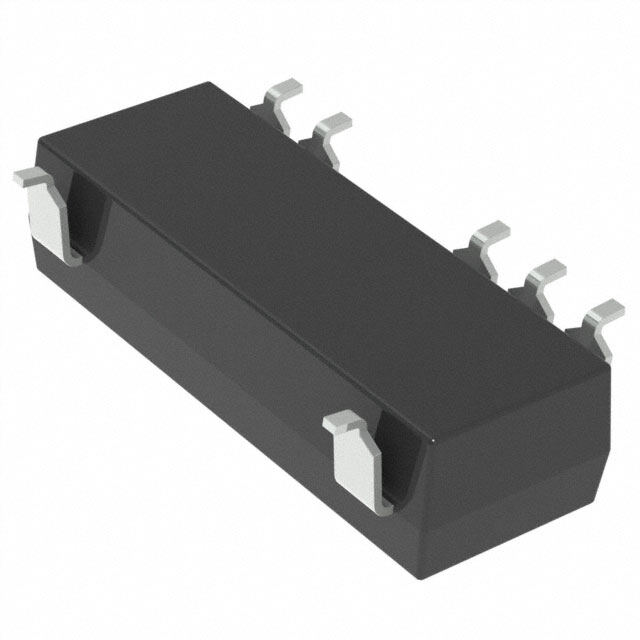

DCPA10515DP-U/700 image
Favorite
DCPA10515DP-U/700 image
Favorite

DCPA10515DP-U/700

Texas Instruments
RoHS
RoHS RoHS compliant
Package 14-SMD Module, 7 Leads, Gull Wing
Category Power Supplies - Board Mount / DC DC Converters
Description Unregulated DC/DC Converter Module Isolated 2kVDC 1W 7-Pin SOP T/R
PDF
/
Buying Options
Total Price: USD $12.08
Unit Price: USD $12.0821
≥1 USD $12.0821
≥10 USD $9.91325
≥100 USD $9.60355
≥500 USD $9.29385
≥1000 USD $8.98415
Inventory: 1409
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Thickness 3.94mm
Width 6.61mm
Length 19.18mm
Height 5.33mm

Technical

Total Power Output-Max 1W
Control Mode VOLTAGE
Voltage - Output 2 -15V
Protections THERMAL
Current - Output (Max) 33mA 33mA
Trim/Adjustable Output NO
Input Voltage-Nom 5V
Voltage - Input (Min) 4.5V
Voltage - Output 1 15V
Output Voltage 15V
Voltage - Input (Max) 5.5V
Voltage - Isolation 2kV
Efficiency 86%
Approval Agency UL
Number of Outputs 2
Base Part Number DCPA10515
Number of Functions 1
Terminal Position DUAL
Technology HYBRID
Power (Watts) 1W
Applications ITE (Commercial)
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 7
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Size / Dimension 0.76Lx0.26W x 0.21 H 19.2mmx6.6mmx5.3mm
Series DCPA1 (1W)
Packaging Tape & Reel (TR)
Operating Temperature -40°C~100°C

Physical

Number of Pins 7
Surface Mount YES
Package / Case 14-SMD Module, 7 Leads, Gull Wing
Mounting Type Surface Mount

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 6 Weeks
