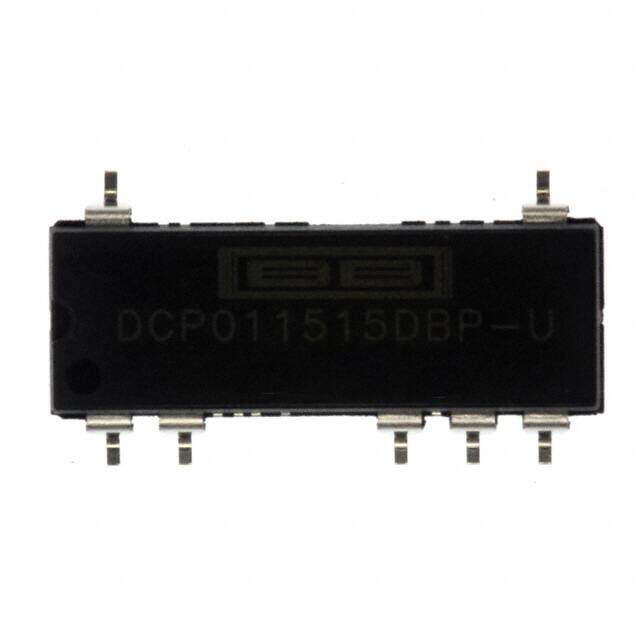

DCP011515DBP-U
RoHS
RoHS compliant
RoHS compliantPackage 14-SMD Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
TEXAS INSTRUMENTS - DCP011515DBP-U - IC, DC/DC CONVERTER, 1W, SMD
PDF
/
Buying Options
Total Price: USD $14.52
Unit Price: USD $14.52
≥1 USD $14.52
≥10 USD $14.40912
≥100 USD $14.29824
≥500 USD $14.078592
≥1000 USD $13.638592
≥3000 USD $12.318768
Inventory: 135
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Mounting Type Surface Mount
Package / Case 14-SMD Module, 7 Leads
Surface Mount YES
Number of Pins 7
Technical
Operating Temperature -40°C~100°C
Packaging Tube
Series DCP01B (1W)
Size / Dimension 0.78Lx0.33W x 0.21 H 19.7mmx8.3mmx5.3mm
JESD-609 Code e4
Feature OTP, SCP
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 7
ECCN Code EAR99
Type Isolated Module
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Applications ITE (Commercial)
Additional Feature ADDITIONAL -15V OUTPUT AVAILABLE
Subcategory Other Analog ICs
Power Rating 1W
Max Power Dissipation 600mW
Technology BCDMOS
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Depth 19.69mm
Frequency 800kHz
Base Part Number DCP011515
Number of Outputs 2
Approval Agency UL
Efficiency 80%
Voltage - Isolation 1kV
Output Voltage 15V
Output Type Fixed
Max Output Current 33mA
Input Voltage-Nom 15V
Trim/Adjustable Output NO
Current - Output (Max) 33mA 33mA
Output Current 33mA
Quiescent Current 20mA
Output Power 1W
Control Features Enable, Active High
Max Output Voltage 15.75V
Control Mode VOLTAGE
Current - Output 1 39mA
Min Output Voltage 14.25V
Max Output Power 1W
Nominal Output Voltage -15V
Current - Output 2 39mA
Max Input Voltage (DC) 16.5V
Min Input Voltage (DC) 13.5V
Switching Frequency 400kHz
Dimensions
Height 5.33mm
Length 19.18mm
Width 6.61mm
Thickness 3.94mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
