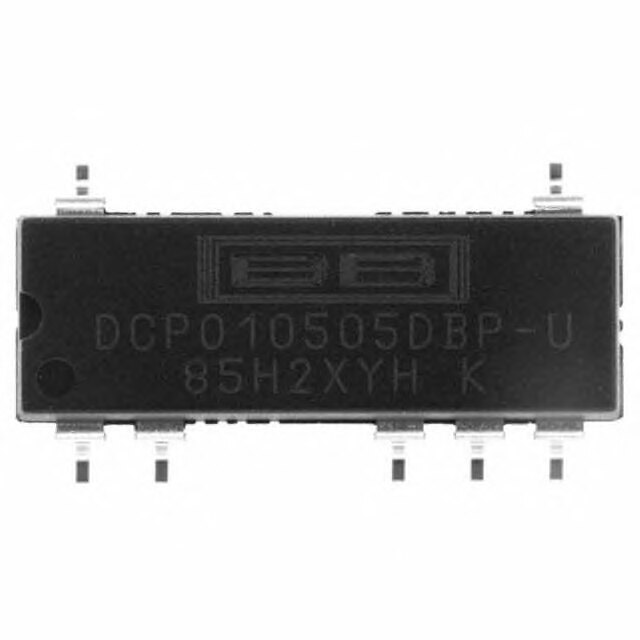

DCP010505DBP-U
RoHS
RoHS compliant
RoHS compliantPackage 14-SMD Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-5V 1W
PDF
/
Buying Options
Total Price: USD $11.06
Unit Price: USD $11.0561
≥1 USD $11.0561
≥10 USD $9.07155
≥100 USD $8.78845
≥500 USD $8.50535
≥1000 USD $8.2213
Inventory: 1623
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Physical
Mounting Type Surface Mount
Package / Case 14-SMD Module, 7 Leads
Surface Mount YES
Number of Pins 7
Technical
Operating Temperature -40°C~100°C
Packaging Tube
Series DCP01B (1W)
Size / Dimension 0.78Lx0.33W x 0.21 H 19.7mmx8.3mmx5.3mm
JESD-609 Code e4
Feature OTP, SCP
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 7
ECCN Code EAR99
Type Isolated Module
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Applications ITE (Commercial)
Subcategory Other Analog ICs
Power Rating 1W
Max Power Dissipation 220mW
Technology BCDMOS
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Frequency 800kHz
Base Part Number DCP010505
Number of Outputs 2
Efficiency 81%
Voltage - Isolation 1kV
Voltage - Input (Max) 5.5V
Output Voltage 5V
Output Type Fixed
Max Output Current 100mA
Voltage - Input (Min) 4.5V
Input Voltage-Nom 5V
Trim/Adjustable Output NO
Current - Output (Max) 100mA 100mA
Output Current 100mA
Quiescent Current 22mA
Output Power 1W
Control Features Enable, Active High
Max Output Voltage 5.75V
Voltage - Output 2 -5V
Control Mode VOLTAGE
Current - Output 1 100mA
Min Output Voltage 4.25V
Max Output Power 970mW
Current - Output 2 100mA
Switching Frequency 400kHz
Dimensions
Height 5.33mm
Length 19.18mm
Width 6.61mm
Thickness 3.94mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
