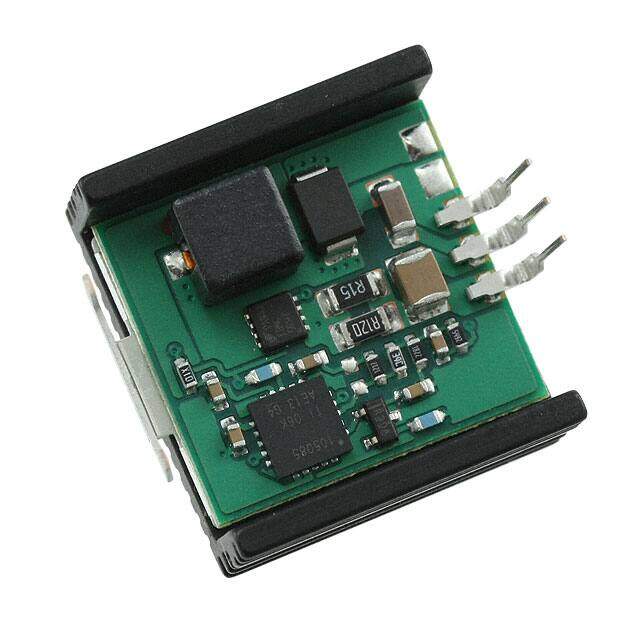

78ST305HC
RoHS
RoHS compliant
RoHS compliantPackage 3-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
REGULATOR 5V 3.0A 20VIN HORZ
PDF
/
Inventory: 9243
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Plating Gold, Tin
Mount Through Hole
Mounting Type Through Hole, Right Angle
Package / Case 3-SIP Module
Number of Pins 3
Weight 11g
Technical
Operating Temperature -40°C~70°C
Packaging Tray
Series 78ST300
Size / Dimension 0.93Lx1.01W x 0.38 H 23.6mmx25.7mmx9.7mm
Feature OTP, SCP
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Subcategory Switching Regulator or Controllers
Max Power Dissipation 15W
Terminal Position SINGLE
Number of Functions 1
Terminal Pitch 2.54mm
Depth 23.62mm
Base Part Number 78ST305
Number of Outputs 1
Efficiency 80%
Voltage - Input (Max) 20V
Output Voltage 5V
Max Output Current 3A
Voltage - Input (Min) 8V
Input Voltage-Nom 9V
Output Current 3A
Control Mode VOLTAGE-MODE
Switcher Configuration BUCK
Dimensions
Height 9.652mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
