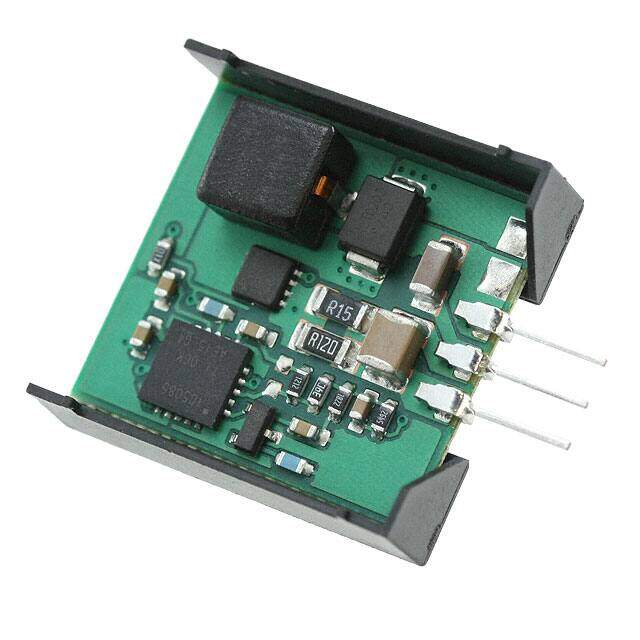

78ST233VC
RoHS
RoHS compliant
RoHS compliantPackage 3-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
REGULATOR 3.3V 2A 3PSIP VRT
PDF
/
Inventory: 7064
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 3-SIP Module
Weight 7g
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series 78ST200
Size / Dimension 0.90Lx0.31W x 0.94 H 22.9mmx7.9mmx23.9mm
Feature OTP, SCP
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Subcategory Switching Regulator or Controllers
Max Power Dissipation 6.6W
Technology HYBRID
Terminal Position SINGLE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Terminal Pitch 2.54mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number 78ST233
JESD-30 Code R-XSMA-T3
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 82%
Voltage - Input (Max) 15V
Output Voltage 3.3V
Max Output Current 2A
Voltage - Input (Min) 7V
Control Mode VOLTAGE-MODE
Current - Output 1 2A
Switcher Configuration BUCK
Dimensions
Height 23.876mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
