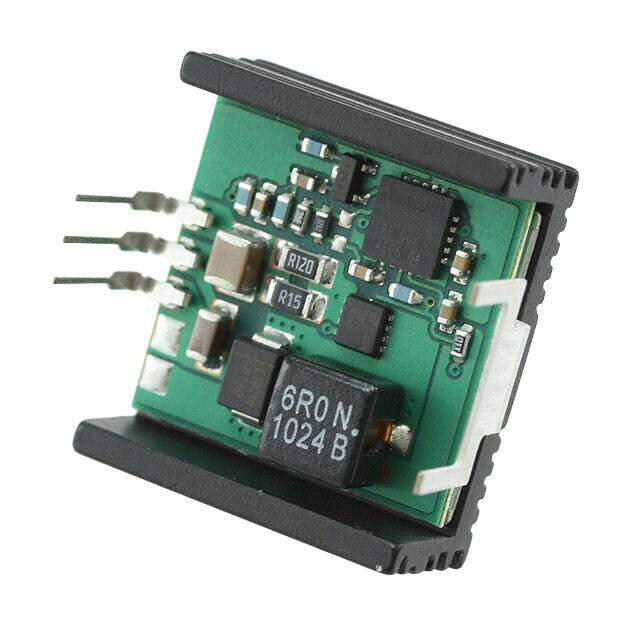

78ST205HC image
Favorite
78ST205HC image
Favorite
RoHS
RoHS RoHS compliant
Package 3-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description REGULATOR 5V/2A 20VIN INT SW HRZ
PDF
/
Buying Options
Total Price: USD $411.43
Unit Price: USD $411.430846
≥1 USD $411.430846
≥10 USD $397.902175
≥25 USD $395.136225
≥50 USD $392.389494
≥100 USD $384.318797
≥500 USD $356.841967
Inventory: 1106
Minimum: 1
-
+

Technical Details

Physical

Mount Through Hole
Mounting Type Through Hole, Right Angle
Package / Case 3-SIP Module
Number of Pins 3
Weight 7g

Technical

Operating Temperature -40°C~85°C
Packaging Tray
Series 78ST200
Size / Dimension 0.93Lx1.01W x 0.38 H 23.6mmx25.7mmx9.7mm
Feature OTP, SCP
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Subcategory Switching Regulator or Controllers
Max Power Dissipation 10W
Technology HYBRID
Terminal Position SINGLE
Number of Functions 1
Terminal Pitch 2.54mm
Depth 22.86mm
Base Part Number 78ST205
Number of Outputs 1
Efficiency 82%
Voltage - Input (Max) 20V
Output Voltage 5V
Max Output Current 2A
Voltage - Input (Min) 8V
Input Voltage-Nom 9V
Output Current 2A
Control Mode VOLTAGE-MODE
Switcher Configuration BUCK

Dimensions

Height 9.652mm

Compliance

Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
