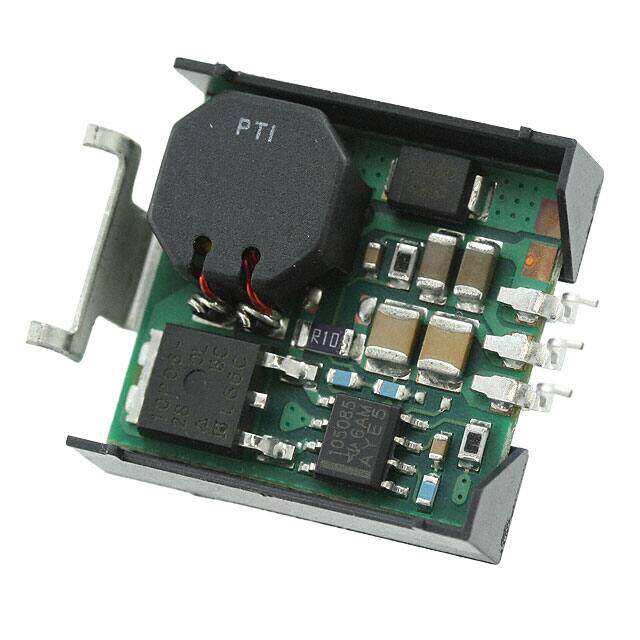

78ST133SC
RoHS
RoHS compliant
RoHS compliantPackage 3-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
REGULATOR 3.3V 1.5A 3PSIP SMD
PDF
/
Inventory: 8164
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height 8.636mm
Technical
Isolation Non-Isolated
Switching Frequency-Max 700kHz
Switcher Configuration BUCK
Control Mode VOLTAGE-MODE
Output Current 1.5A
Input Voltage-Nom 10V
Voltage - Input (Min) 7V
Max Output Current 1.5A
Output Voltage 3.3V
Voltage - Input (Max) 26V
Efficiency 80%
Number of Outputs 1
JESD-30 Code R-XSMA-G3
Base Part Number 78ST133
Depth 22.86mm
Number of Functions 1
Terminal Form GULL WING
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 5W
Subcategory Switching Regulator or Controllers
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature OTP, SCP
Size / Dimension 0.94Lx0.90W x 0.34 H 23.9mmx22.9mmx8.6mm
Series 78ST100
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Weight 6.5g
Number of Pins 5
Package / Case 3-SMD Module
Mounting Type Surface Mount
Mount Surface Mount
