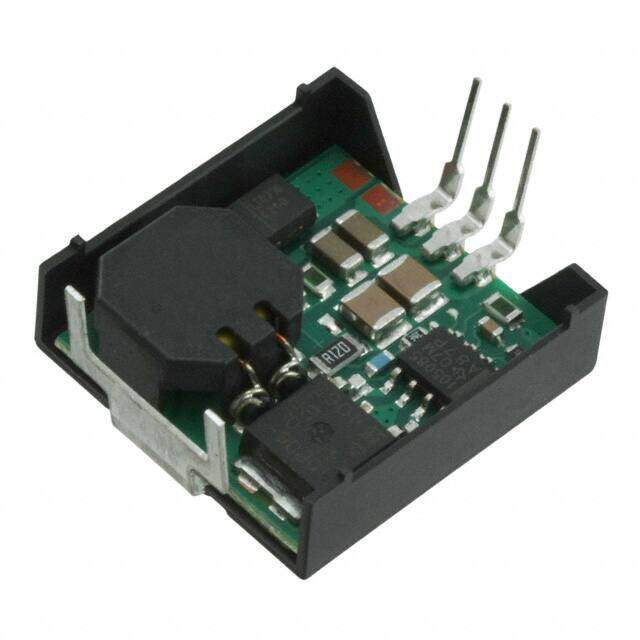

78ST112HC
RoHS
RoHS compliant
RoHS compliantPackage 3-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
REG 12V/1.5A INT SWIT HORIZ FTR
PDF
/
Inventory: 5223
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Height 7.874mm
Technical
Switching Frequency-Max 700kHz
Switcher Configuration BUCK
Current - Output 1 1.5A
Control Mode VOLTAGE-MODE
Output Power 18W
Output Current 1.5A
Input Voltage-Nom 16V
Voltage - Input (Min) 14.5V
Max Output Current 1.5A
Output Voltage 12V
Voltage - Input (Max) 30V
Efficiency 90%
Qualification Status Not Qualified
Number of Outputs 1
JESD-30 Code R-XSMA-T3
Base Part Number 78ST112
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 18W
Subcategory Switching Regulator or Controllers
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature OTP, SCP
Size / Dimension 0.94Lx0.90W x 0.31 H 23.9mmx22.9mmx7.9mm
Series 78ST100
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Weight 6.5g
Package / Case 3-SIP Module
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold, Tin
