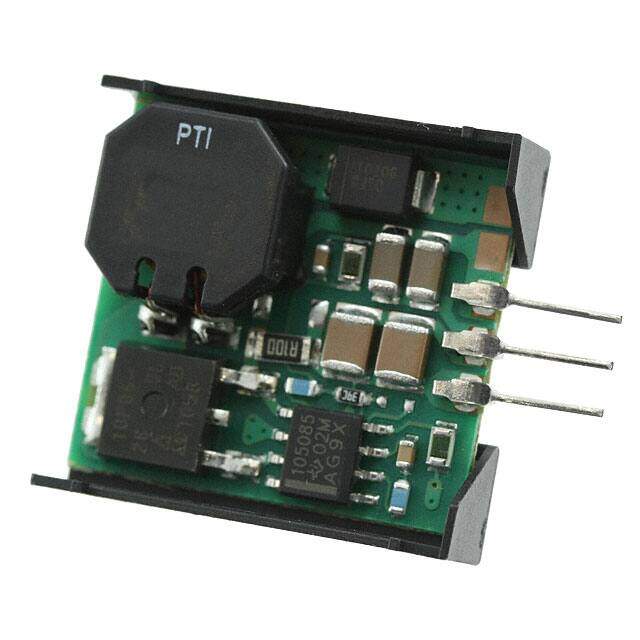

78SR115VC image
Favorite
78SR115VC image
Favorite
RoHS
RoHS RoHS compliant
Package 3-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description REGULATOR 15V/1.5A INT SW VERT
PDF
/
Inventory: 3451
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Height 23.876mm

Technical

Switching Frequency-Max 700kHz
Switcher Configuration BUCK
Current - Output 1 1.5A
Control Mode VOLTAGE-MODE
Output Power 22.5W
Output Current 1.5A
Voltage - Input (Min) 14.5V
Max Output Current 1.5A
Output Voltage 15V
Voltage - Input (Max) 30V
Number of Outputs 1
Pin Count 3
Base Part Number 78SR115
Current Rating 1.5A
Depth 7.87mm
Number of Functions 1
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 22.5W
Subcategory Switching Regulator or Controllers
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature OTP, SCP
Size / Dimension 0.90Lx0.31W x 0.94 H 22.9mmx7.9mmx23.9mm
Series 78SR100
Packaging Tray
Operating Temperature -40°C~85°C

Physical

Weight 6.5g
Number of Pins 3
Package / Case 3-SIP Module
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold, Tin
