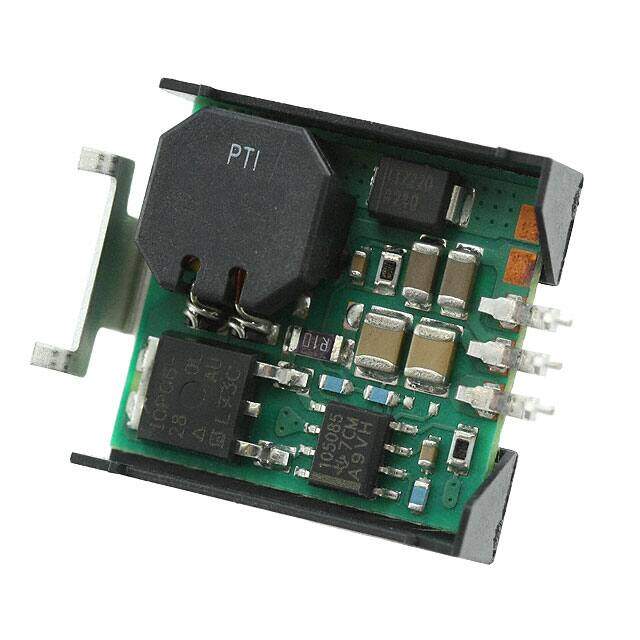

78SR115SC
RoHS
RoHS compliant
RoHS compliantPackage 3-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 15V
PDF
/
Inventory: 6531
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status ROHS3 Compliant
Dimensions
Height 8.636mm
Technical
Switching Frequency-Max 700kHz
Switcher Configuration BUCK
Control Mode VOLTAGE-MODE
Output Current 1.5A
Voltage - Input (Min) 14.5V
Max Output Current 1.5A
Output Voltage 15V
Voltage - Input (Max) 30V
Qualification Status Not Qualified
Number of Outputs 1
JESD-30 Code R-XSMA-G3
Pin Count 3
Base Part Number 78SR115
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 22.86mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form GULL WING
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 22.5W
Subcategory Switching Regulator or Controllers
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code no
Feature OTP, SCP
Size / Dimension 0.94Lx0.90W x 0.34 H 23.9mmx22.9mmx8.6mm
Series 78SR100
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Number of Pins 5
Package / Case 3-SMD Module
Mounting Type Surface Mount
Mount Surface Mount
