78SR105HC
RoHS
RoHS compliant
RoHS compliantPackage 3-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description

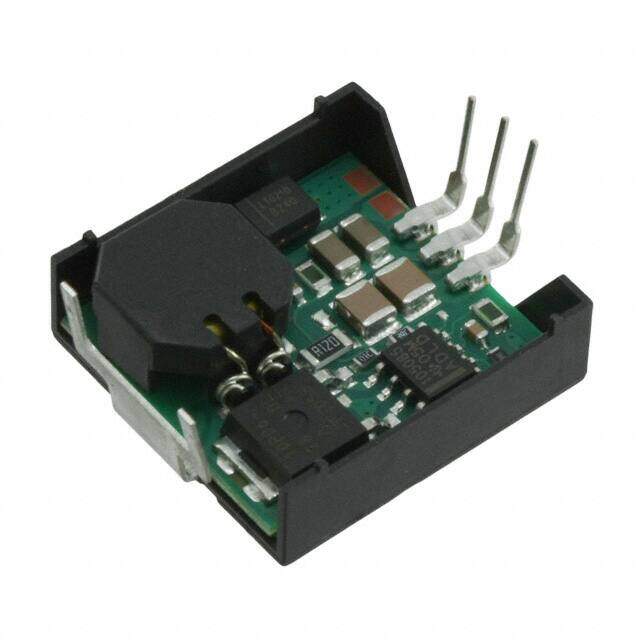

TEXAS INSTRUMENTS 78SR105HC Linear Regulator DC/DC Converter, Fixed, Through Hole, 1 Output, 5 V, 1.5 A
PDF
/
Buying Options
Total Price: USD $4.51
Unit Price: USD $4.50585
≥1 USD $4.50585
≥10 USD $3.6974
≥100 USD $3.5815
≥500 USD $3.46655
≥1000 USD $3.35065
Inventory: 4006
Minimum: 1
-
+
Technical Details
Technical
Depth 22.86mm
Current Rating 1.5A
Frequency 650kHz
Base Part Number 78SR105
Pin Count 3
Number of Outputs 1
Efficiency 85%
Output Voltage 5V
Max Output Current 1.5A
Input Voltage-Nom 9V
Output Current 1.5A
Output Power 7.5W
Control Mode VOLTAGE-MODE
Current - Output 1 1.5A
Switcher Configuration BUCK
Nominal Output Voltage 5V
Max Input Voltage (DC) 30V
Min Input Voltage (DC) 7V
Terminal Pitch 2.54mm
Number of Functions 1
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 7.5W
Subcategory Switching Regulator or Controllers
HTS Code 8504.40.85.00
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature OTP, SCP
Size / Dimension 0.94Lx0.90W x 0.31 H 23.9mmx22.9mmx7.9mm
Series 78SR100
Packaging Tray
Operating Temperature -40°C~85°C
Dimensions
Height 7.874mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Physical
Weight 6.5g
Number of Pins 3
Package / Case 3-SIP Module
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold, Tin
Alternative Model
