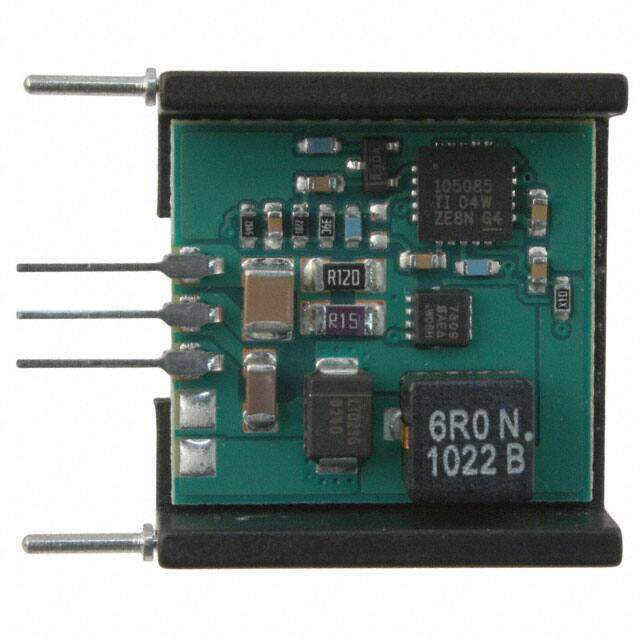

78HT305VC
RoHS
RoHS compliant
RoHS compliantPackage 3-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
REGULATOR 5V 3A 28VIN 3PSIP VRT
PDF
/
Inventory: 8585
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Height 24.892mm
Technical
Isolation Non-Isolated
Switching Frequency-Max 800kHz
Switcher Configuration BUCK
Current - Output 1 3A
Output Power 15W
Output Current 3A
Input Voltage-Nom 9V
Voltage - Input (Min) 8V
Max Output Current 3A
Output Voltage 5V
Voltage - Input (Max) 28V
Efficiency 80%
Qualification Status Not Qualified
Number of Outputs 1
Pin Count 3
Base Part Number 78HT305
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 9.4mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Max Power Dissipation 15W
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature OTP, SCP
Size / Dimension 1.01Lx0.38W x 0.98 H 25.7mmx9.7mmx24.9mm
Series 78HT300
Packaging Tray
Operating Temperature -40°C~70°C
Physical
Weight 11g
Number of Pins 3
Package / Case 3-SIP Module
Mounting Type Through Hole
Mount Through Hole
