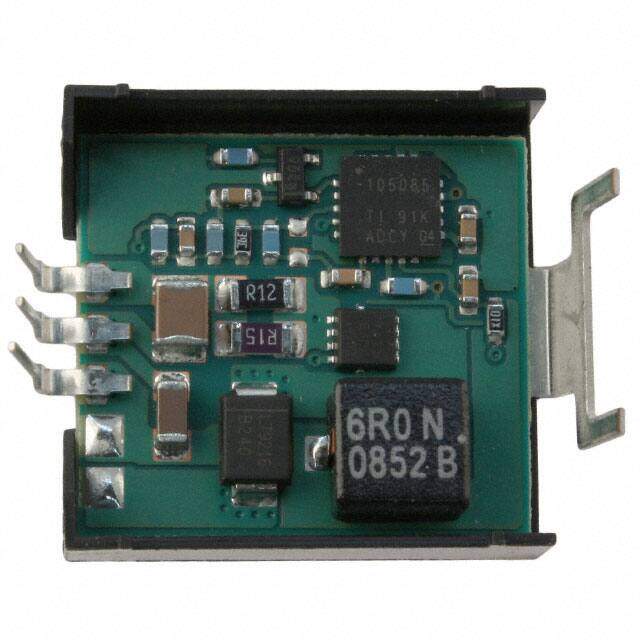

78HT253HC
RoHS
RoHS compliant
RoHS compliantPackage 3-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
REG 5.25V 2A 28VIN INT SW HRZ
PDF
/
Inventory: 1883
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole, Right Angle
Package / Case 3-SIP Module
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series 78HT200
Size / Dimension 0.94Lx0.90W x 0.31 H 23.9mmx22.9mmx7.9mm
Feature OTP, SCP
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Max Power Dissipation 10.5W
Terminal Position SINGLE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number 78HT253
Pin Count 3
JESD-30 Code R-XSMA-T3
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 82%
Voltage - Input (Max) 28V
Output Voltage 5.25V
Max Output Current 2A
Voltage - Input (Min) 7.25V
Input Voltage-Nom 9V
Switcher Configuration BUCK
Switching Frequency-Max 800kHz
Dimensions
Height 7.874mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
