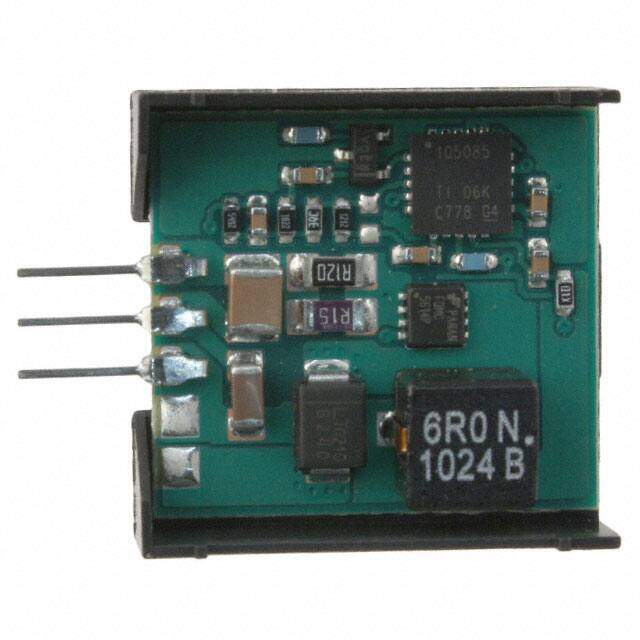

78HT233VC image
Favorite
78HT233VC image
Favorite
RoHS
RoHS RoHS compliant
Package 3-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description REG 3.3V 2A 15VIN INT SWIT VRT
PDF
/
Buying Options
Total Price: USD $32.57
Unit Price: USD $32.572837
≥1 USD $32.572837
≥10 USD $30.72909
≥100 USD $28.989704
≥500 USD $27.348782
≥1000 USD $25.800735
Inventory: 2342
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant

Dimensions

Height 23.876mm

Technical

Switcher Configuration BUCK
Output Current 2A
Input Voltage-Nom 9V
Voltage - Input (Min) 7V
Max Output Current 2A
Output Voltage 3.3V
Voltage - Input (Max) 15V
Efficiency 82%
Qualification Status Not Qualified
Number of Outputs 1
Pin Count 3
Base Part Number 78HT233
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 7.62mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Max Power Dissipation 6.6W
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature OTP, SCP
Size / Dimension 0.90Lx0.31W x 0.94 H 22.9mmx7.9mmx23.9mm
Series 78HT200
Packaging Tray
Operating Temperature -40°C~85°C

Physical

Weight 7g
Number of Pins 3
Package / Case 3-SIP Module
Mounting Type Through Hole
Mount Through Hole
