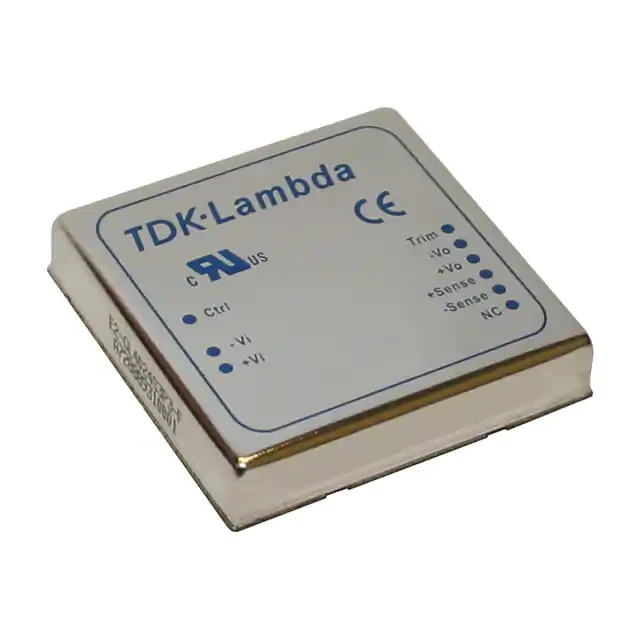

PXF4024T0512 image
Favorite
PXF4024T0512 image
Favorite

PXF4024T0512

TDK-Lambda Americas Inc.
RoHS
RoHS RoHS compliant
Package 9-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description DC-DC CONVERTER, ISO POL, 3 O/P, 40W, 5V, 12V
PDF
/
Buying Options
Total Price: USD $100.5
Unit Price: USD $100.5016
≥1 USD $100.5016
≥10 USD $94.812826
≥100 USD $89.446062
≥500 USD $84.38308
≥1000 USD $79.606677
Inventory: 1158
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
REACH SVHC Unknown

Dimensions

Height 10.16mm

Technical

Current - Output 3 400mA
Switching Frequency 300kHz
Min Input Voltage (DC) 18V
Max Input Voltage (DC) 36V
Current - Output 2 400mA
Isolation Isolated
Max Output Power 40W
Voltage - Output 3 -12V
Current - Output 1 6A
Voltage - Output 2 12V
Output Power 40W
Output Current 6A
Current - Output (Max) 6A 400mA 400mA
Trim/Adjustable Output NO
Input Voltage-Nom 24V
Max Output Current 6A
Output Voltage 5V
Voltage - Isolation 1.6kV
Efficiency 87%
Approval Agency CE, UL
Qualification Status Not Qualified
Number of Outputs 3
Pin Count 9
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 50.8mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 40W
Power Rating 40W
Subcategory Power Supply Modules
Additional Feature ADDITIONAL +12 VOLT AND -12 VOLT OUTPUTS ARE ALSO AVAILABLE
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 9
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature Remote On/Off, OCP, OVP, SCP
Size / Dimension 2.00Lx2.00W x 0.40 H 50.8mmx50.8mmx8.6mm
Series PXF (40W)
Published 2008
Packaging Bulk
Operating Temperature -40°C~100°C

Physical

Weight 59.817494g
Number of Pins 9
Package / Case 9-DIP Module
Mounting Type Through Hole
Mount PCB, Through Hole

Supply Chain

Factory Lead Time 13 Weeks
