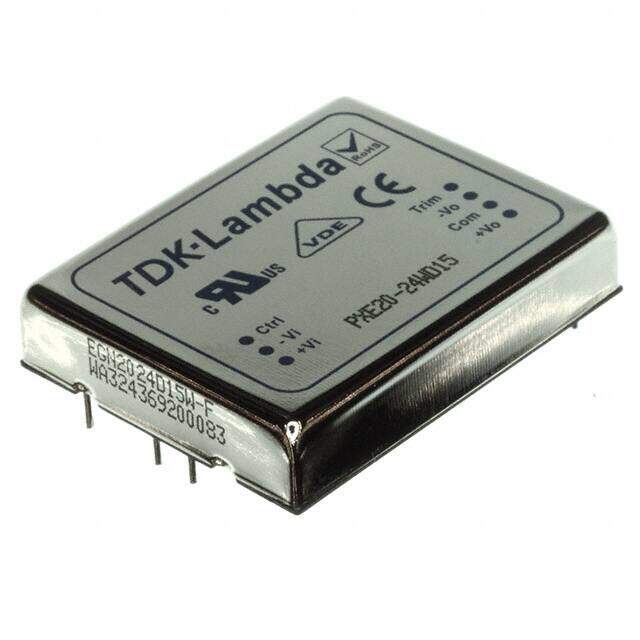

PXE2024WD15
RoHS
RoHS compliant
RoHS compliantPackage 8-DIP Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
Module DC-DC 24VIN 2-OUT 15V/-15V 0.666A/-0.666A 20W 7-Pin
PDF
/
Buying Options
Total Price: USD $90.63
Unit Price: USD $90.632818
≥1 USD $90.632818
≥10 USD $85.502655
≥100 USD $80.662888
≥500 USD $76.09706
≥1000 USD $71.789683
Inventory: 1160
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 8-DIP Module, 7 Leads
Number of Pins 7
Technical
Operating Temperature -40°C~100°C
Packaging Bulk
Published 2005
Series PXE (20W)
Size / Dimension 2.00Lx1.60W x 0.40 H 50.8mmx40.6mmx8.6mm
Feature Remote On/Off
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 7
Type Isolated Module
Applications ITE (Commercial)
Subcategory Power Supply Modules
Power Rating 20W
Max Power Dissipation 20W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Number of Functions 1
Depth 40.6mm
Number of Outputs 2
Approval Agency CE, CSA, EN, UL
Efficiency 82%
Voltage - Isolation 1.6kV
Output Voltage 15V
Max Output Current 666mA
Operating Supply Voltage 24V
Input Voltage-Nom 24V
Trim/Adjustable Output YES
Current - Output (Max) 666mA 666mA
Output Current 666mA
Output Power 20W
Voltage - Output 2 -15V
Current - Output 1 666mA
Max Output Power 20W
Isolation Isolated
Nominal Output Voltage -15V
Current - Output 2 666mA
Max Input Voltage (DC) 36V
Min Input Voltage (DC) 9V
Dimensions
Height 10.16mm
Length 50.8mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
