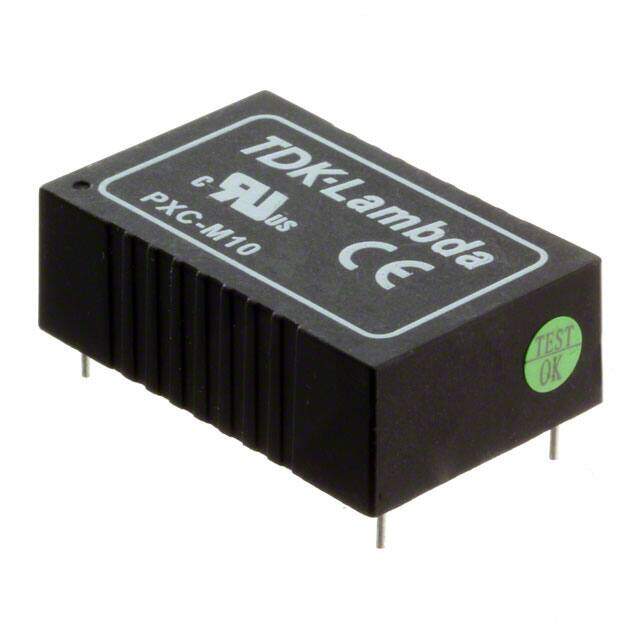

PXCM1024WS12A image
Favorite
PXCM1024WS12A image
Favorite
RoHS
RoHS RoHS compliant
Package 24-DIP Module, 5 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description TDK LAMBDA PXC-M10-24WS12-A DC-DC CONVERTER, MEDICAL, 12V, 0.83A
PDF
/
Inventory: 4836
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Width 20.3mm

Technical

Current - Output (Max) 830mA
Trim/Adjustable Output YES
Input Voltage-Nom 24V
Voltage - Input (Min) 9V
Voltage - Output 1 12V
Output Voltage 12V
Voltage - Input (Max) 36V
Voltage - Isolation 5kV
Efficiency 89%
Number of Outputs 1
JESD-30 Code R-XXMA-X7
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Power (Watts) 10W
Applications Medical
Type Isolated Module
ECCN Code EAR99
Number of Terminations 7
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature OCP, OVP, SCP
Size / Dimension 1.25Lx0.80W x 0.40 H 31.8mmx20.3mmx10.2mm
Series PXC-M10 (10W)
Published 2015
Packaging Tube
Operating Temperature -40°C~105°C

Physical

Surface Mount NO
Package / Case 24-DIP Module, 5 Leads
Mounting Type Through Hole

Supply Chain

Factory Lead Time 13 Weeks
