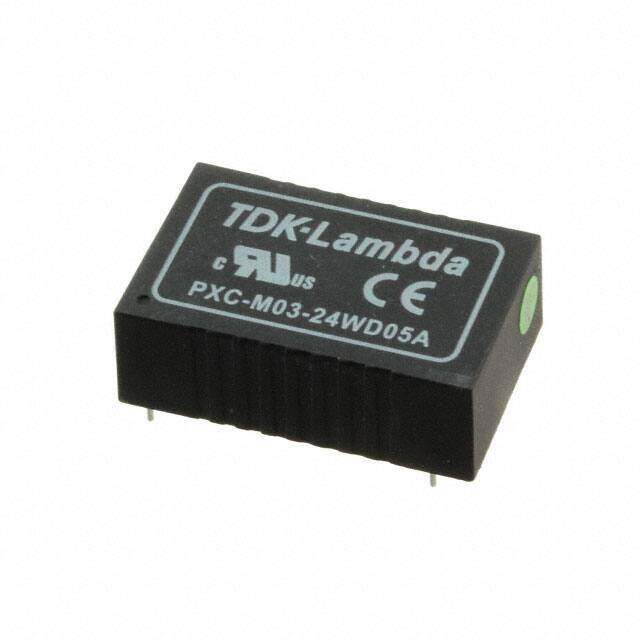

PXCM0324WD05A image
Favorite
PXCM0324WD05A image
Favorite
RoHS
RoHS RoHS compliant
Package 24-DIP Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description DC/DC CONVERTER +/-5V .3A PCB
PDF
/
Inventory: 9337
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 13 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case 24-DIP Module, 6 Leads

Technical

Operating Temperature -40°C~105°C
Packaging Tube
Published 2015
Series PXC-M03 (3W)
Size / Dimension 1.25Lx0.80W x 0.40 H 31.8mmx20.3mmx10.2mm
Feature OCP, OVP, SCP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 7
ECCN Code EAR99
Type Isolated Module
Applications Medical
Max Power Dissipation 3W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-XXMA-X7
Number of Outputs 2
Efficiency 83%
Voltage - Isolation 5kV
Voltage - Input (Max) 36V
Output Voltage 5V
Max Output Current 300mA
Voltage - Output 1 5V
Voltage - Input (Min) 9V
Input Voltage-Nom 24V
Trim/Adjustable Output YES
Current - Output (Max) 300mA 300mA
Output Power 3W
Voltage - Output 2 -5V
Total Power Output-Max 3W

Dimensions

Height 10.16mm
Length 31.8mm

Compliance

RoHS Status RoHS Compliant
